- Max. LAN Data Rate:150Mbps
- With Modem Function:Yes
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11n
- Standards And Protocols:Wi-Fi 802.11ac
- Standards And Protocols:Wi-Fi 802.11a
- Wi-Fi Supported Frequency:2.4G & 5G
- Supports WDS:Yes
- Supports WPS:Yes
- Wi-Fi Transmission Standard:802.11ac
- Wired Transfer Rate:10/100Mbps
- 2.4G Wi-Fi Transmission Rate:300 Mbps
- Encryption Type:WPA2
- Encryption Type:WPA
- Encryption Type:WEP
- Products Status:New
- Type:Wireless
- Application:ENTERPRISE
- Function:Voip
- Function:FireWall
- Function:QoS
- Function:VPN
- LAN Ports:4
- WAN Ports:1
- Certification:FCC
- Certification:ce
- Certification:RoHS
- Place of Origin:CN;FUJ
- Brand Name:YiFan/OEM
Products Description
Spec | Description | Content | |

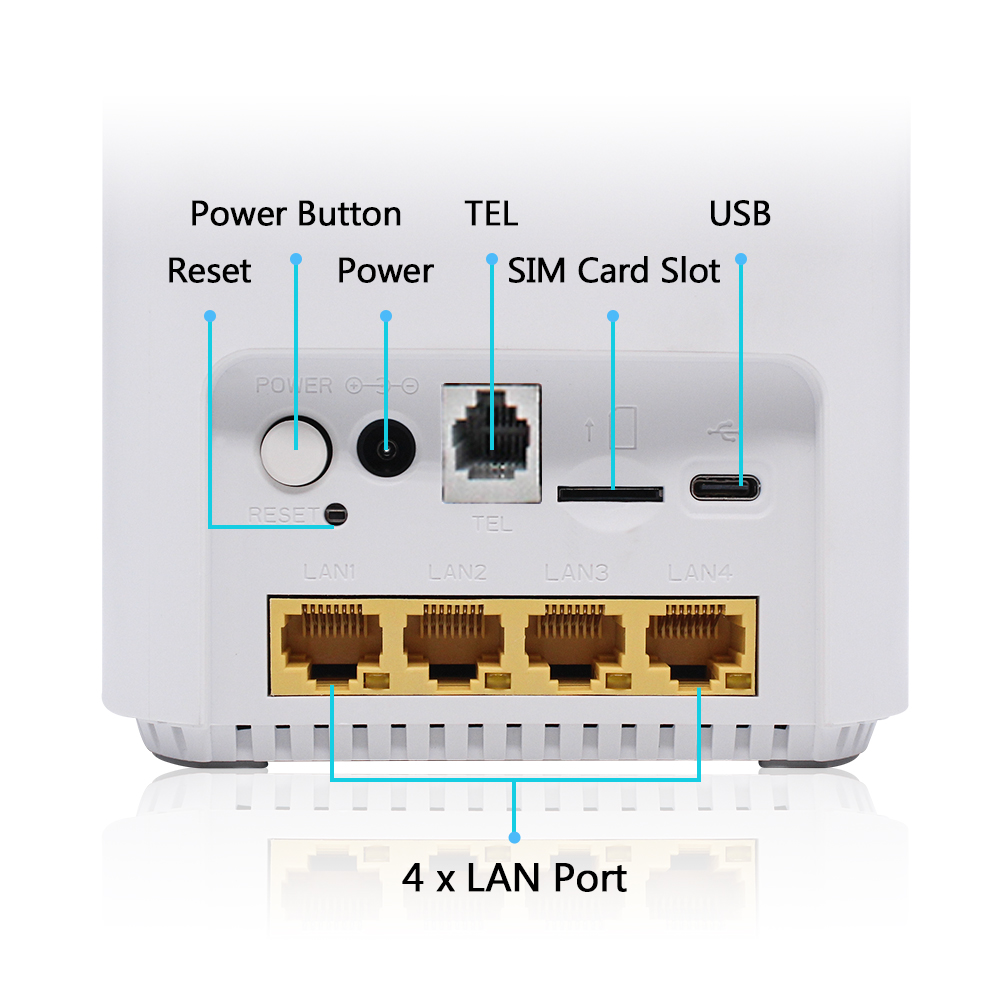

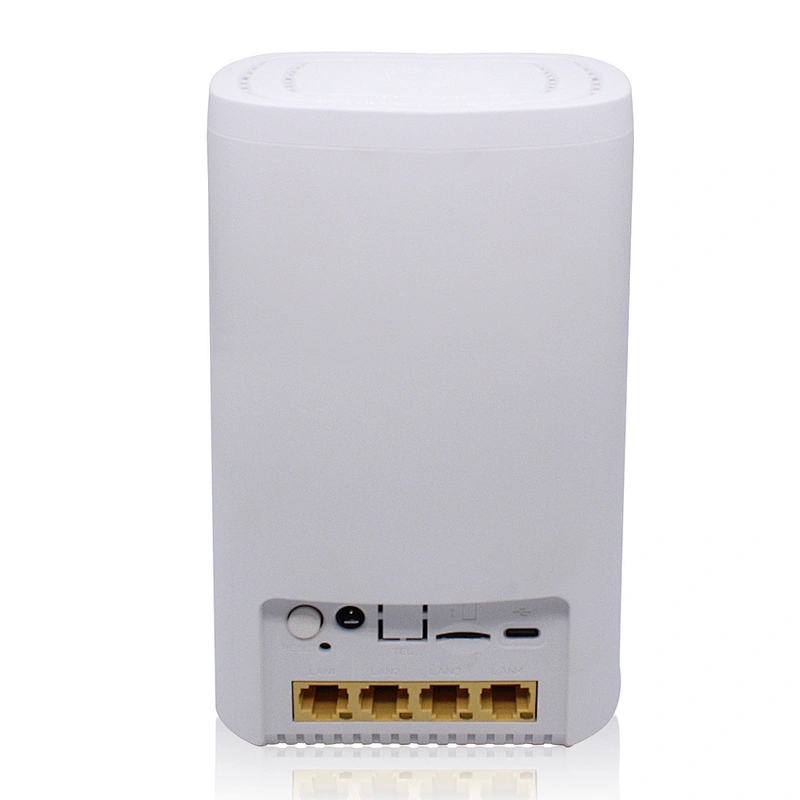

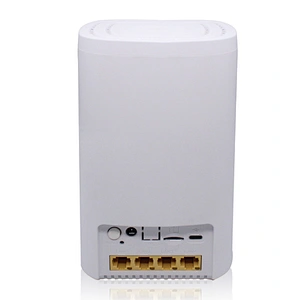

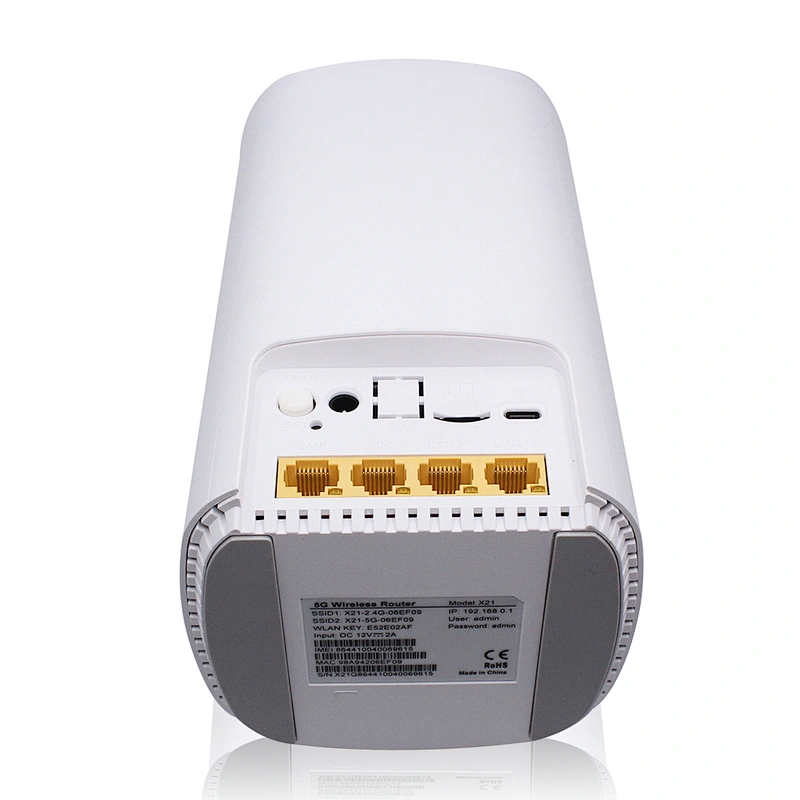

inference | 1. GE LAN Port * 4 2. RJ11 Port * 1(In Roadmap) 3. SIM Slot * 1 (3FF) 4. DC Socket 5. TYPE_C USB3.1 for Manufacture | ||
LAN/WAN | GE Port * 4, (Currently DHCP/STATIC mode). | ||
Buttons | 1. Power ON/OFF Button 2. WPS Button 3. Reset Key | ||

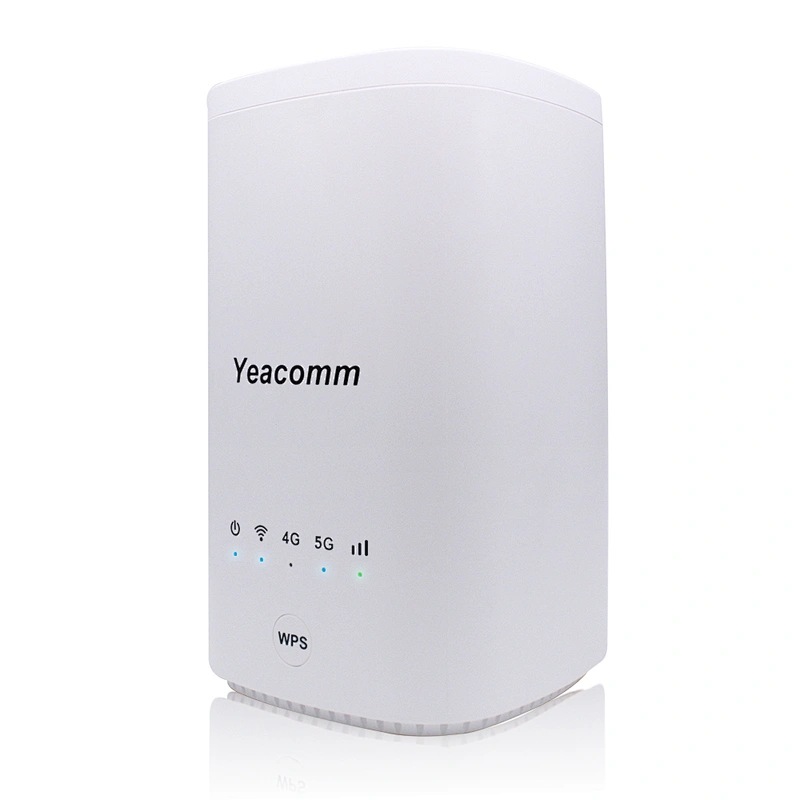

Indictors | 1. Power 2. Wi-Fi Switch Status 3. 4G Internet 4. 5G Internet 5. Signal Bar Indicator | ||
Chipset | 5G/LTE: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz |
Wi-Fi: Realtek 8198D | |
RF standard | 5G NR (3GPP Release 15) TDD-LTE/FDD-LTE |
Memory | ROM: 2Gb |
RAM: 4Gb DDR3 | |
Power Supply | AC100V~240V,50Hz~60Hz DC 12V DC±10% 2A |
WIFI Features
Support Wi-Fi Switch turn on/off, | ||||||||
Support Wi-Fi SSID/KEY setup | ||||||||
Support Encryption: OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA3-PSK, WPA2/WPA3-PSK | ||||||||
Support SSID broadcasting | ||||||||
Support Wi-Fi protocol IEEE 802.11 b/g/n, IEEE 802.11 ac | ||||||||
Support Wi-Fi bandwidth setup | ||||||||
Support Wi-Fi channel self-adapt and select | ||||||||
Support Wi-Fi maximum users 2.4G Wi-Fi: 32 5G Wi-Fi: 32 | ||||||||
Support multi SSID and guest SSID | ||||||||
Support WPS: Support WPS PIN/WPS PBC | ||||||||
Device Management | ||||||||
Software Update | WebUI update T R069 update | |||||||
TR069 | HTTP/HTTPS Supports upload / download the ACS specified file Support download CPE configuration file Support configure & queries parameters Support remote upgrade Support cycle monitor | |||||||
Diagnostics | Ping/Trace/Tcpdump | |||||||
Export current diagnosis results and operation logs | ||||||||
Support Bands | 5G NR: N1/N3/N8/N28/N41/N77/N78/N79 | ||||||
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B, B32 can be customized; | |||||||
4G TDD: B34/B38/B39/B40/B41 | |||||||
