- Products Status:Stock
- Product name:4G LTE Wifi Router
- Network:4G/3G/2G
- Interface:1WAN/LAN
- Support:Wifi Sharing
- Wireless Speed:Cat 4 150 Mbps DL
- User:Support 32 Wifi Users
- WIFI:802.11b/g/n 150Mbps
- Antenna:Built-in 4G 3G
- Color:white
- Max. LAN Data Rate:150Mbps
- With Modem Function:Yes
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11n
- Wi-Fi Supported Frequency:2.4G
- Wi-Fi Transmission Standard:802.11n
- Wired Transfer Rate:10/100Mbps
- 2.4G Wi-Fi Transmission Rate:150 Mbps
- Encryption Type:WPA2-PSK
- Encryption Type:WPA2-Enterprise
- Encryption Type:WPA-PSK
- Encryption Type:WPA-Enterprise
- Products Status:New
- Type:Wireless
- Application:Outdoor
- Function:FireWall
- Function:VPN
- LAN Ports:1
- WAN Ports:1 x10/100Mbps
- Place of Origin:CN;FUJ
- Certification:CE
- Brand Name:Yeacomm
Product Description

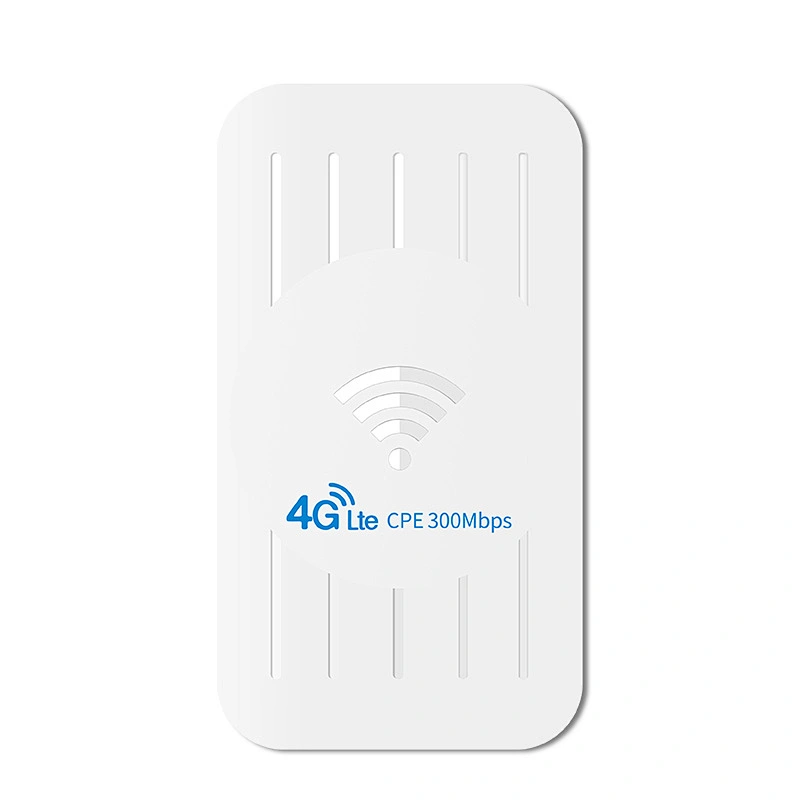

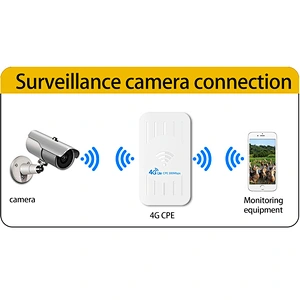

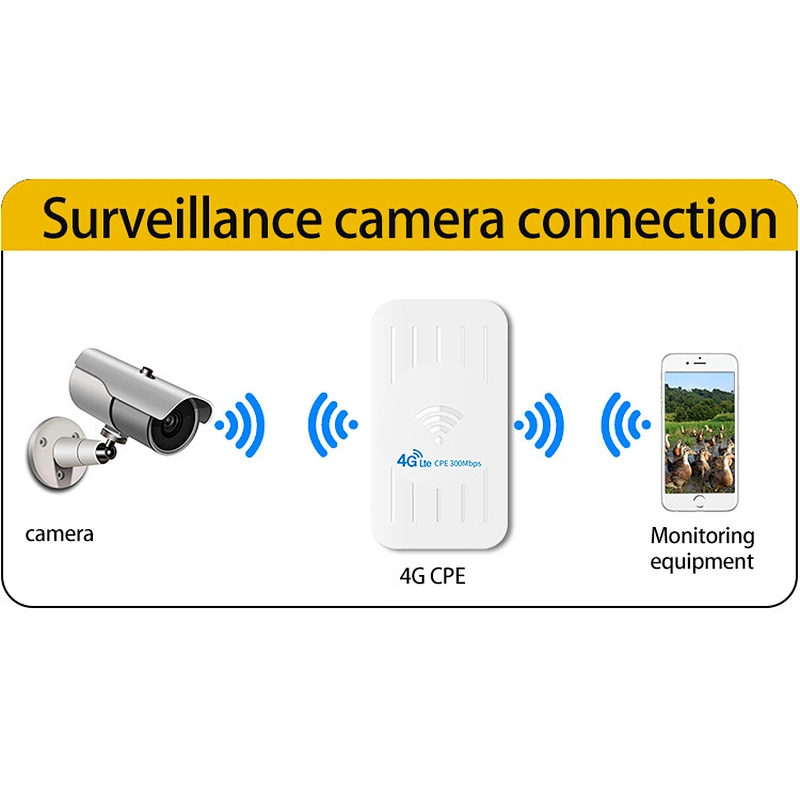

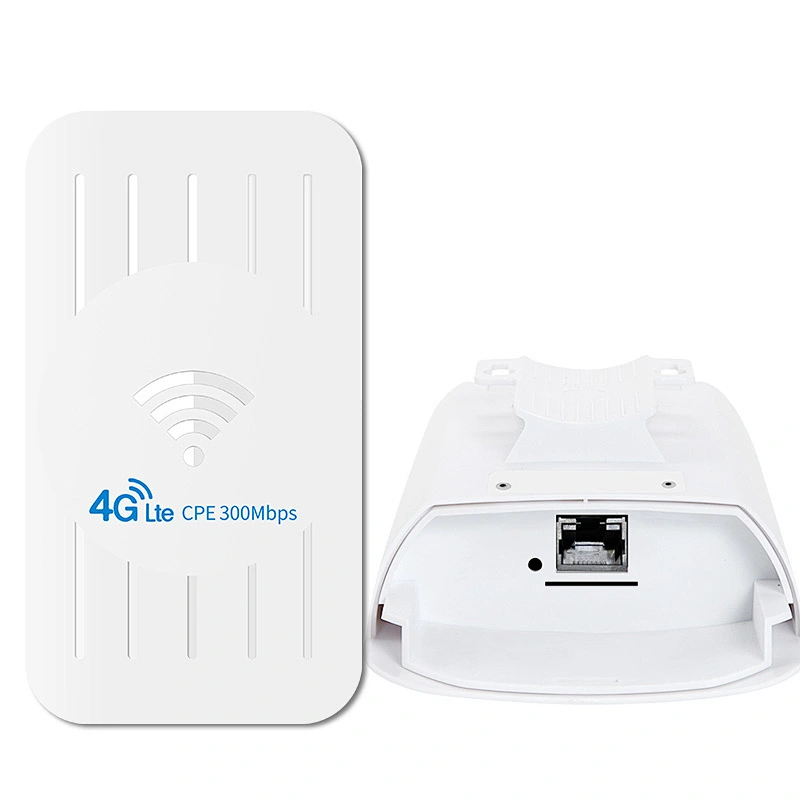

YF-P5 is a 4G outdoor WIFI CPE that uses public 3G/4G networks to provide users with wireless long-distance data transmission functions. The product is with POE power and waterproof, widely used for outdoor solution.
Specification
Outdoor unit | ||
Frequency | FDD:B1/3/5/7/8/20 TDD:B38/40/41 WCDMA:B1/5/8 | |
Speed(CAT4) Max | FDD - LTE Downlink:150Mbps, Uplink:50Mbps TDD-LTE: Downlink:150Mbps, Uplink:50Mbps HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) | |
Chipset | MT7628NN | |
Memory | 512Mb DDR2 SDRAM | |
VPN | Support L2TP | |

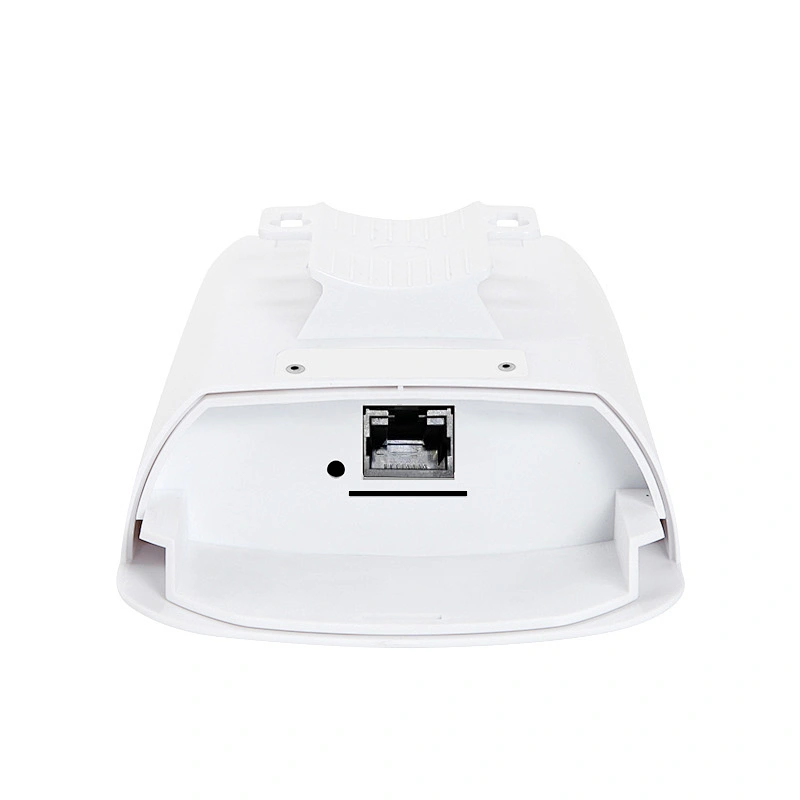

Lan | 1 x 10/100 Mbps Ethernet port(RJ45), | |
Indicator | "Power","Sim","ETH","Run"and"Signal" | |
Antenna | Cellular: high gain Internal 5DBi | |
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | |

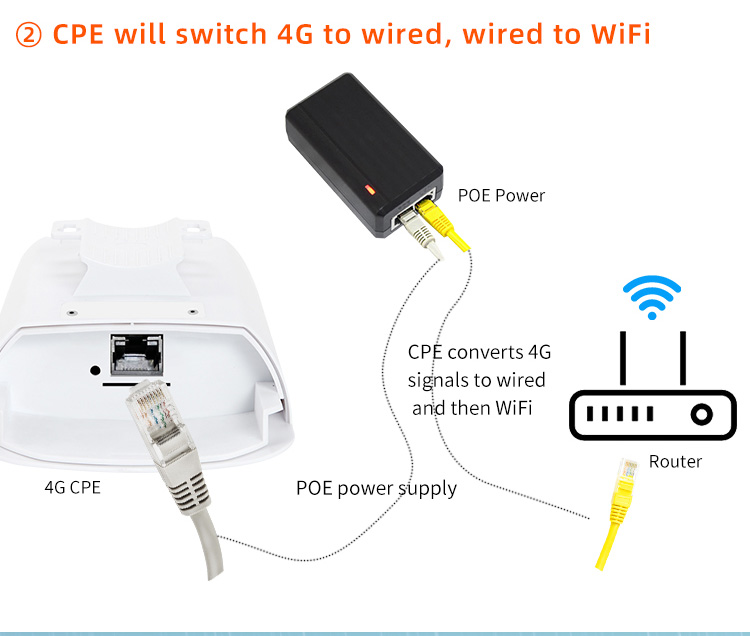

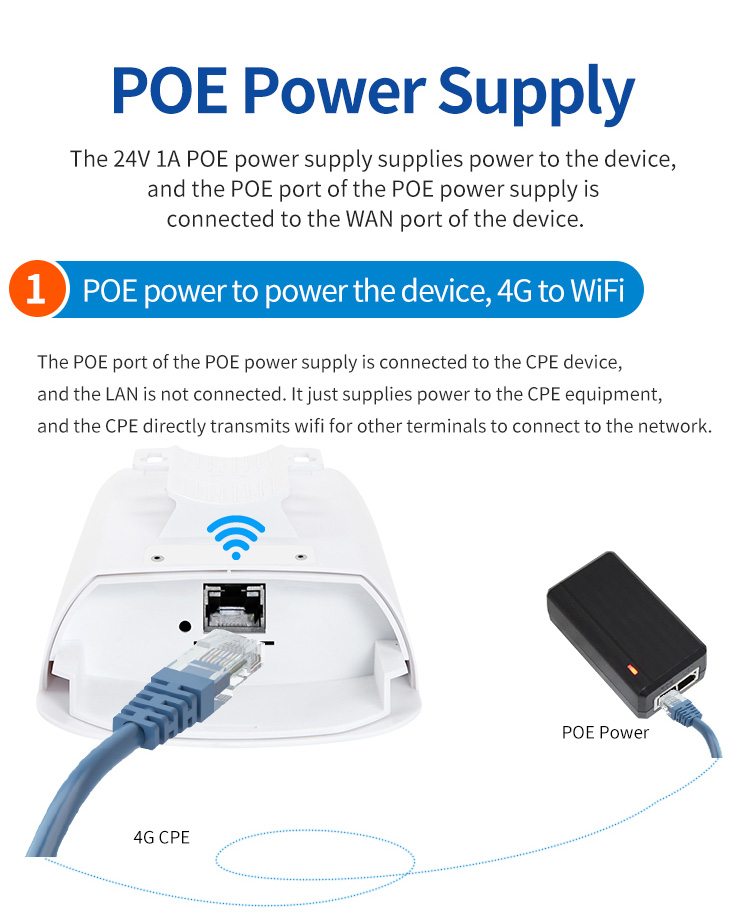

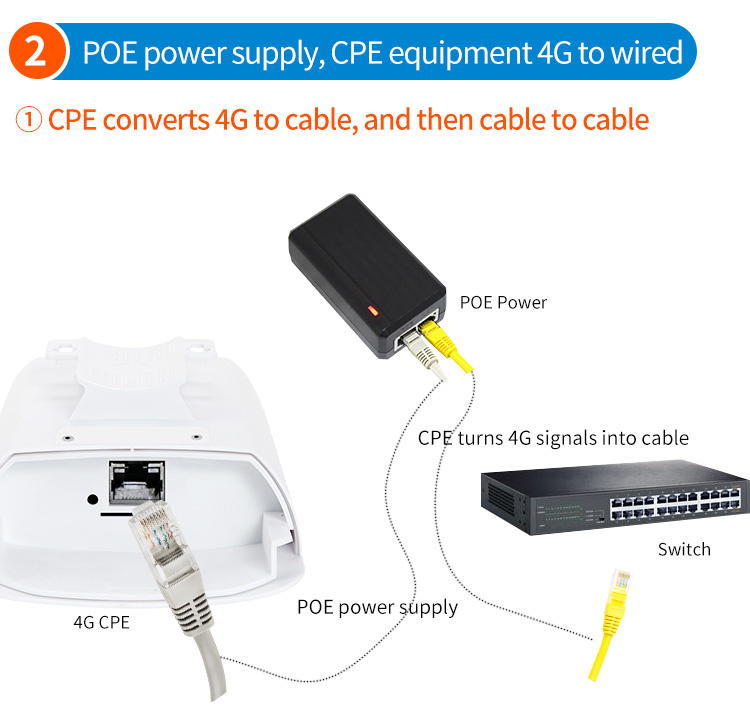

Power | POE , through RJ45 port | |
Reset | Restore the router to its original factory default settings | |
Working temperature | -30~60℃ | |
Humidity | ≤95% | |

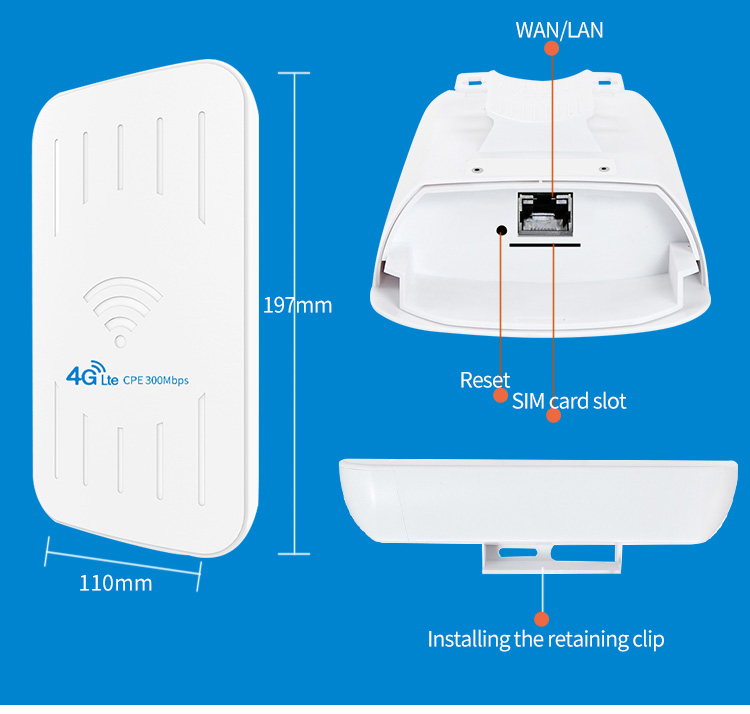

Dimension | 197*110*59 mm | |
weight | about 300g | |
Water proof and dust proof | IP65 | |
Products Detail
Features
Our Company

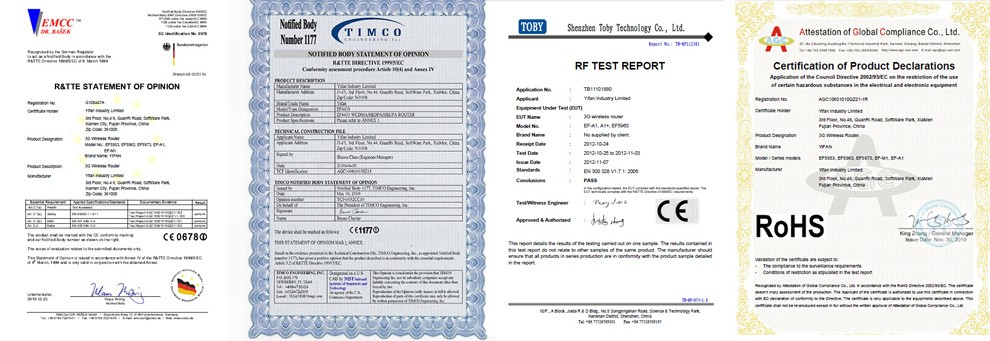

Certifications
