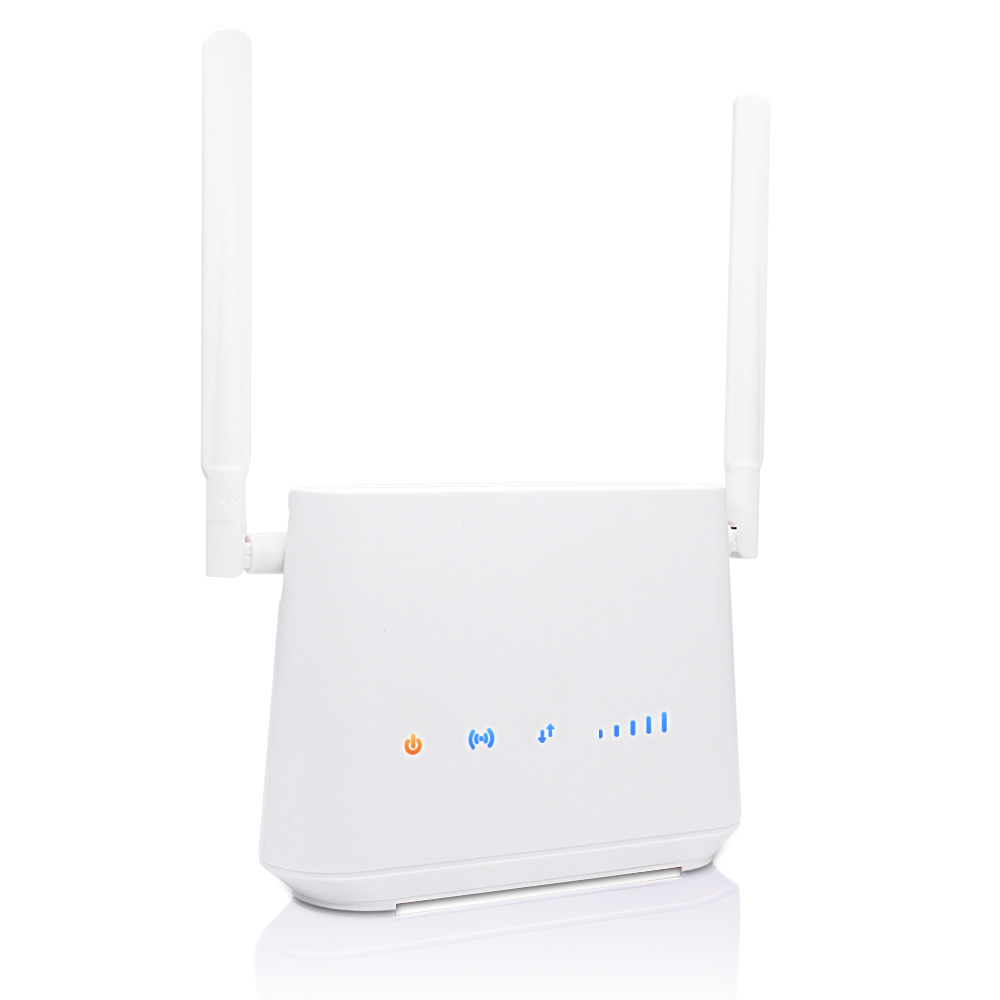

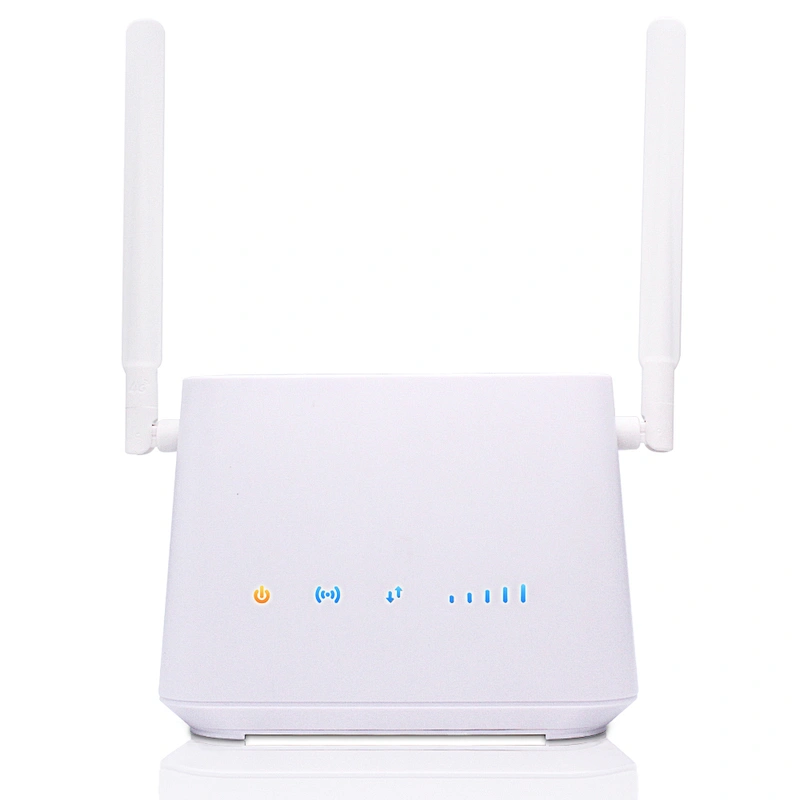

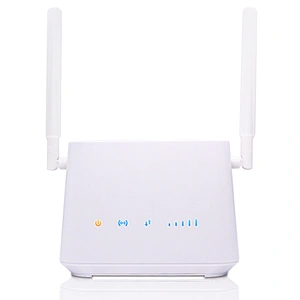

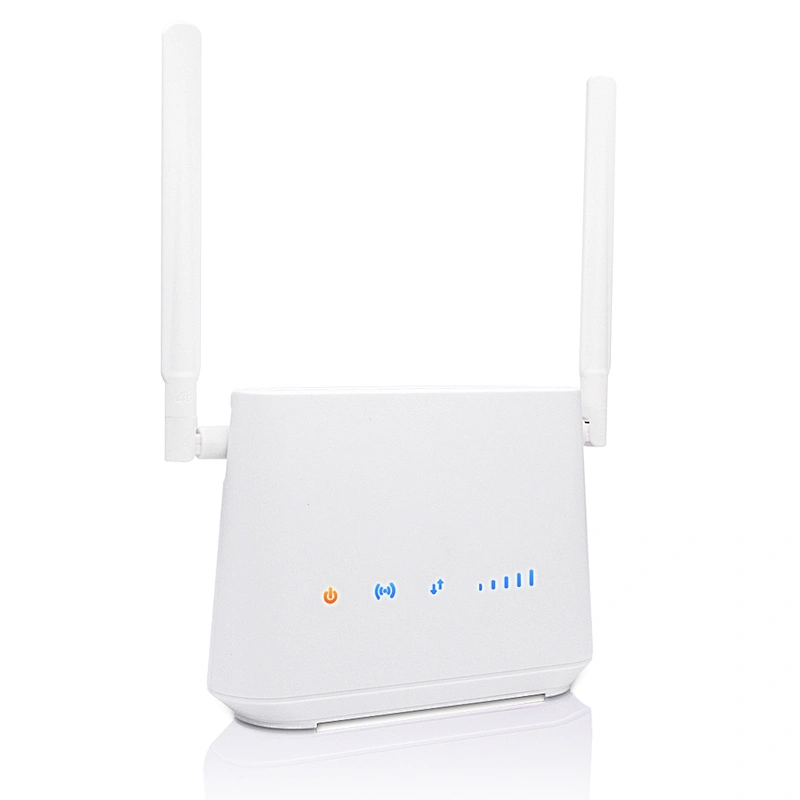

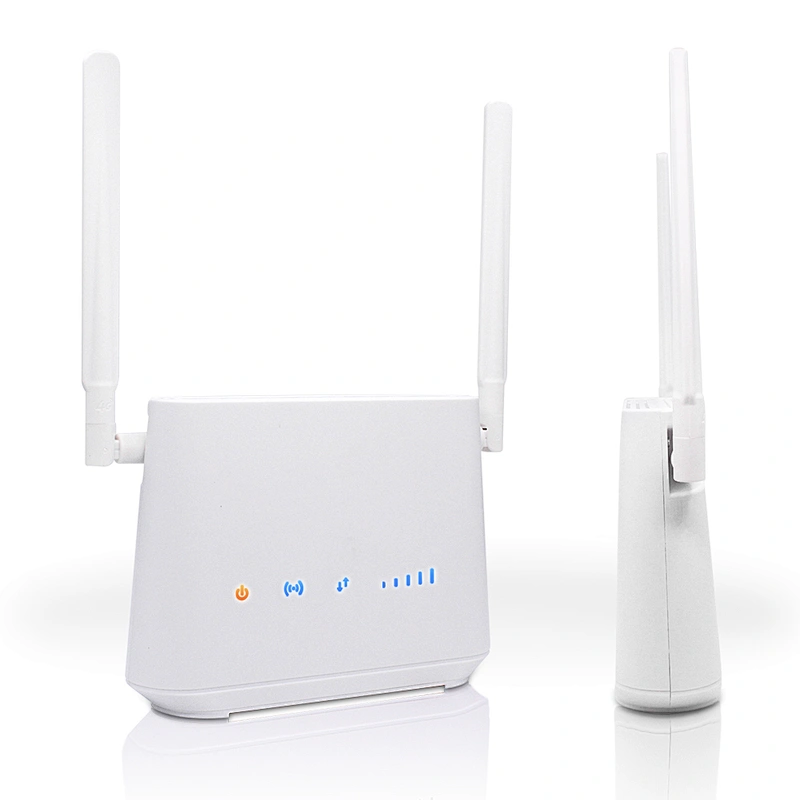

Yeacomm YF-S12P CAT6 4G LTE VOLTE VOIP CPE Indoor Dual Band Router

Yeacomm YF-S12P CAT6 4G LTE VOLTE VOIP CPE Indoor Dual Band Router

Model NO.: YF-S12P

Quantity:

Product Description

Products Description

YF-S12P CAT6 4G LTE VOLTE VOIP CPE

Main functions:

*Support 2G/3G/4G/4G+ network connection *VOLTE(optional)
*VoIP(optional)
*Support external antenna and build-in battery (Optional)
*Dual Band WIFI 2.4G/5G
*Prevent loiter network, multi wireless safety ensuring.
*IP broadband band control, ensure the speed.
*Support network traffic statistics.
*Support up to 32 WIFI devices online simultaneously.
*IEEE802.11b/g/n/ac
*Functioning as a Dynamic Host Configuration Protocol (DHCP) server and supporting
*Network Address Translation (NAT)
*Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
*Security functions
* Wi-Fi protected setup (WPS)

Technical standards	WAN: LTE-A/LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM
	WLAN: 802.11b/g/n/ac
Working bands	Standard: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD-LTE B34/B38/B39/B40/B41(200M)
Speed	FDD - LTE Downlink：300Mbps， Uplink：50Mbps TDD-LTE: Downlink：226Mbps， Uplink：28Mbps HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed)
Wifi	WIFI Standard	IEEE 802.11b/g/n/ac
	Wi-Fi Channel BW	20MHz, 40MHz,80MHz(ac)
	RF power	1 5 dBm/2.4G;18 dBm/5G;
	Wifi Antennas	4 Built-in wifi antennas
	CSFB	Support

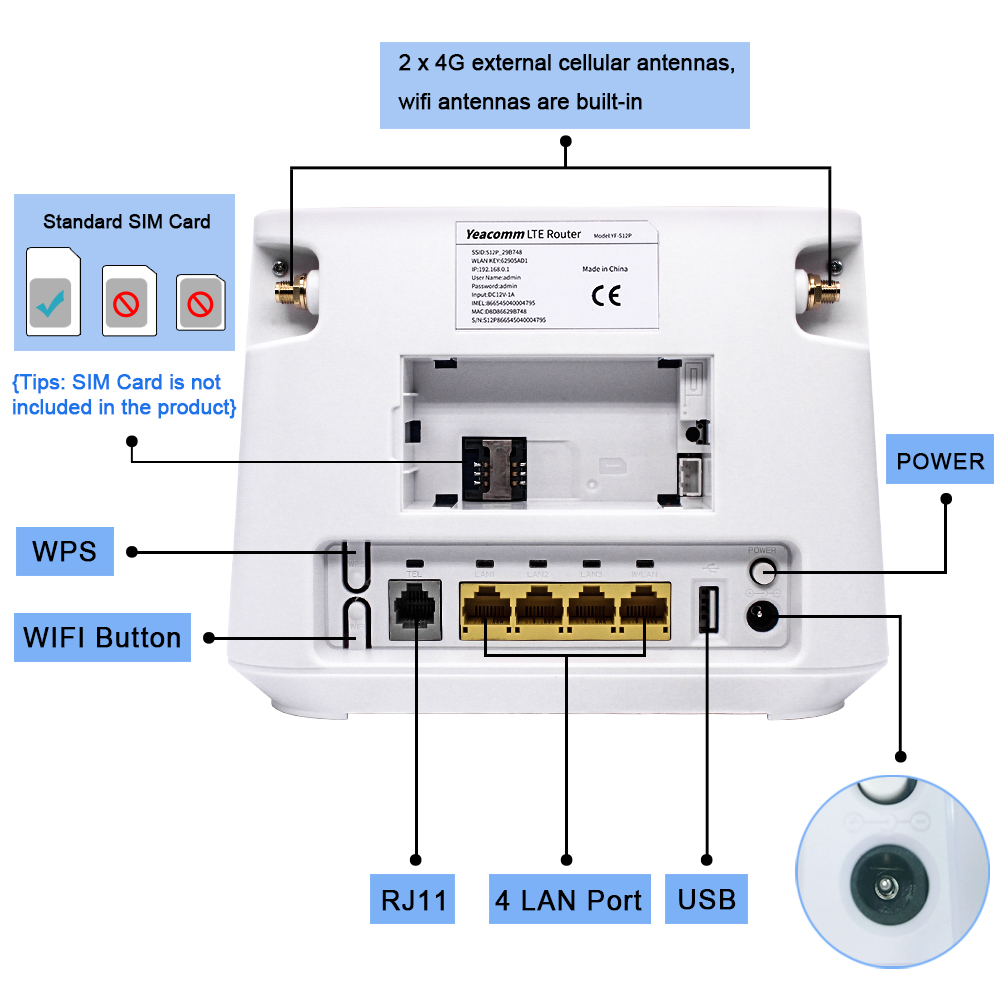

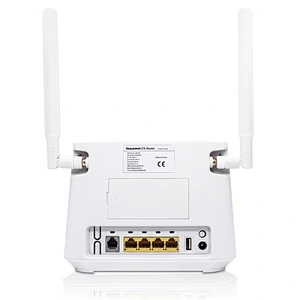

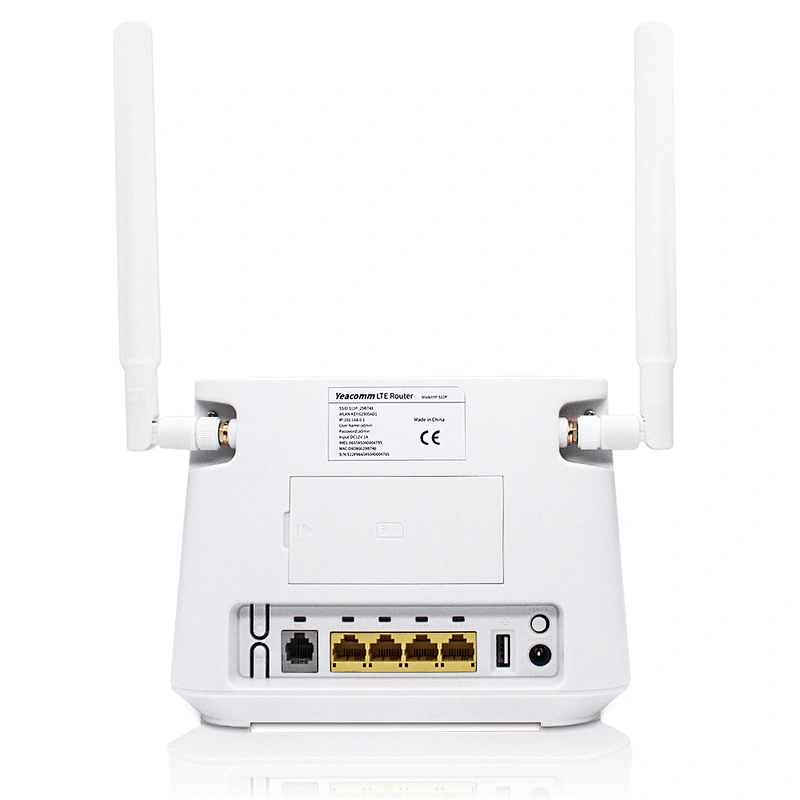

External Port	4* Gigabit RJ45 port (1WAN/LAN, 3 Lan)
	1*RJ11
	2*SMA external antenna port
	1*sim card slot
Buttons	One power button One WPS button One reset button
Antenna	External antenna，Gain>5db
PSU	12V/2A
power	9-18V
lights	11 LED Indicators (PWR, Wi-Fi, 4G/LTE, RF Signal)

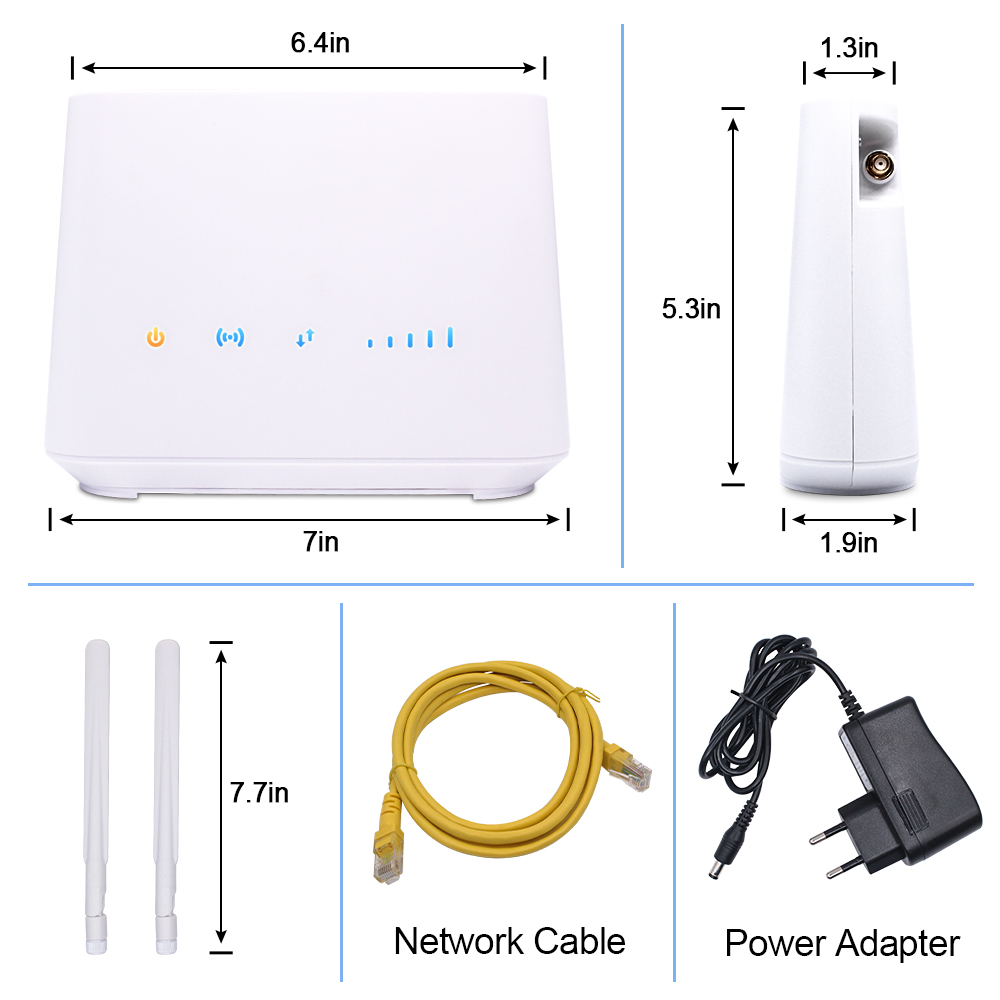

Diemensions	180mm132mm48mm
Temperature	Working temperature		-20～50℃
	Storage temperature		40～85℃
