- Product name:4G LTE Wifi Router
- Antenna:2* 5dBi Antennas
- Frequency:2.4GHz
- Interface:4 LAN /1 WAN
- CPU:32bits CPU
- SIM card slot:1 SIM Card Support
- Protocol:IEEE 802.11N/B/G
- Network:4G LTE+3G(HSPA+/HSPA/UMTS)
- Color:White
- Products Status:Samples
- Max. LAN Data Rate:100Mbps
- With Modem Function:Yes
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11n
- Standards And Protocols:Wi-Fi 802.11a
- Wi-Fi Supported Frequency:2.4G
- Supports WDS:Yes
- Supports WPS:Yes
- Wi-Fi Transmission Standard:802.11n
- Wired Transfer Rate:10/100Mbps
- 2.4G Wi-Fi Transmission Rate:150 Mbps
- Encryption Type:WPA2-PSK
- Encryption Type:WPA
- Encryption Type:WEP
- Products Status:New
- Type:CPE
- Application:indoor
- Function:Voip
- Function:FireWall
- Function:QoS
- Function:VPN
- LAN Ports:4
- WAN Ports:1
- Certification:FCC
- Certification:ce
- Certification:RoHS
- Place of Origin:CN;FUJ
- Brand Name:YiFan/OEM

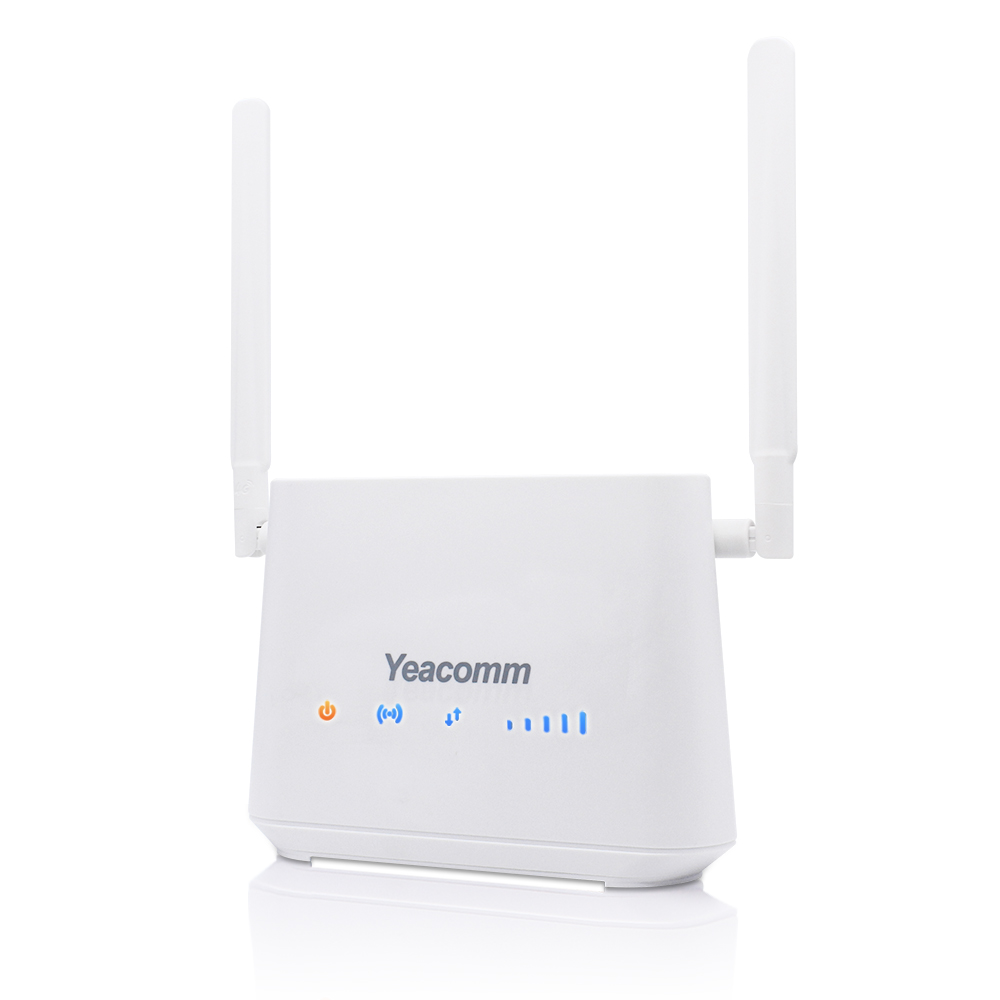

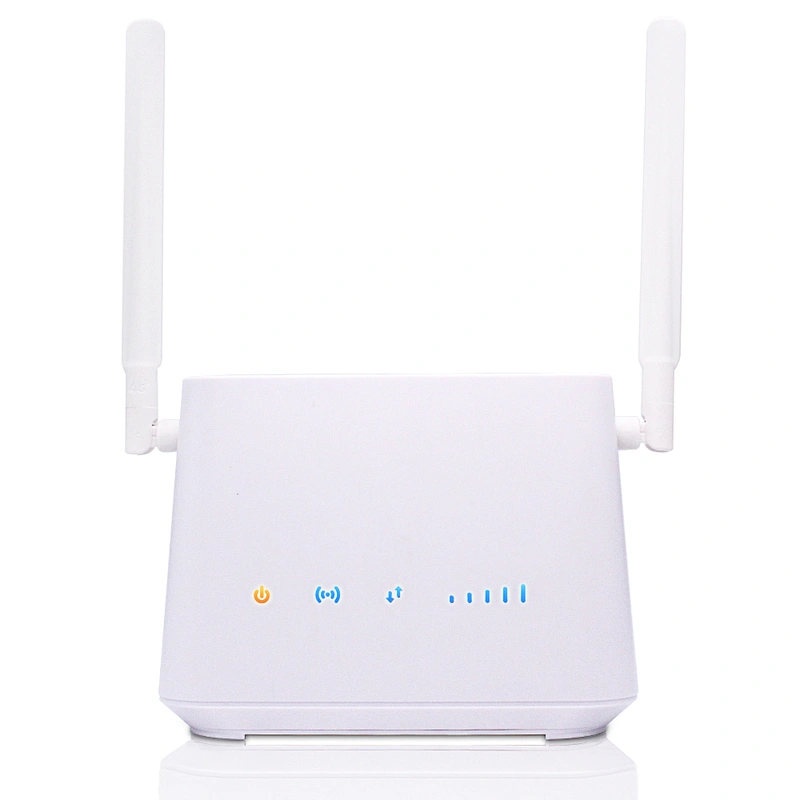

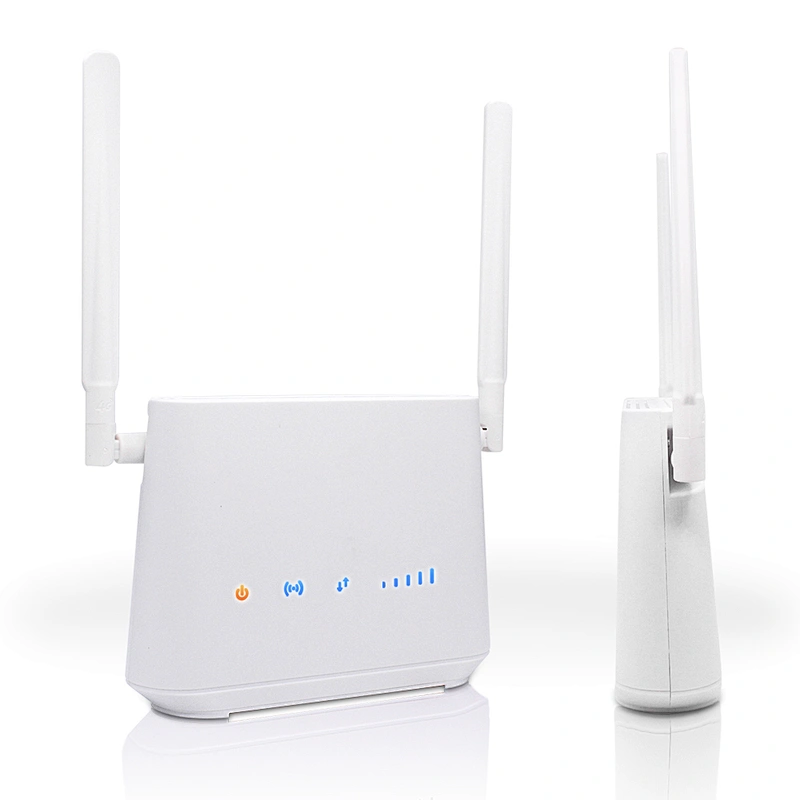

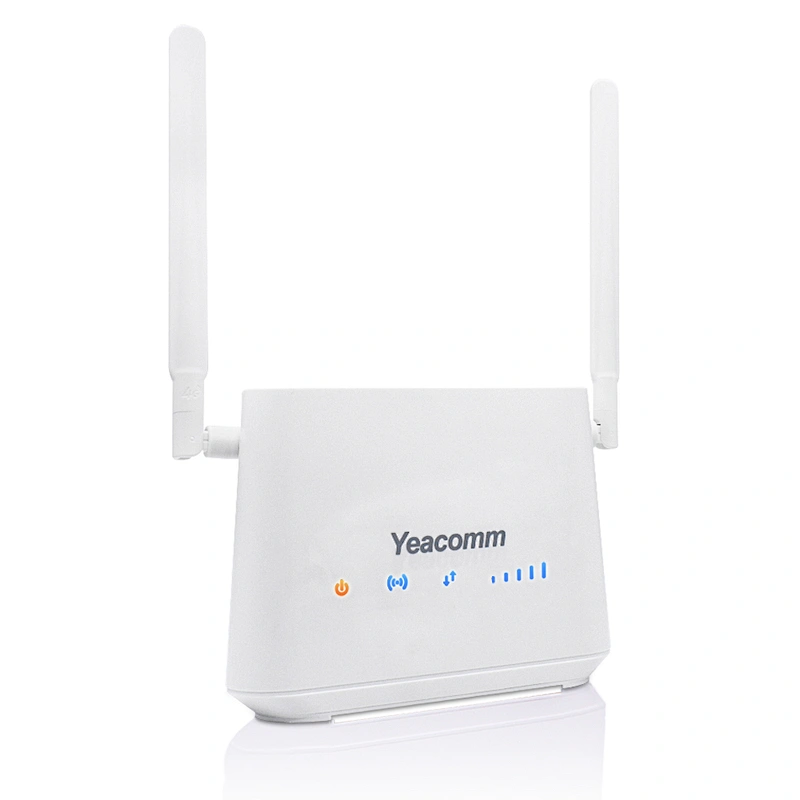

Indoor 4g CPE
Specification
YF-S12
4G Platform | ZTE | ||||||
Modem | LTE-FDD/TDD-LTE/WCDMA ( Frequency can be customized ) | ||||||
LTE | FDD: B1/B2/B3/B5/B7/B8/B20/B28A, B2/B3/B4/B5/B7/B7/B28A/B28B (Optional) TDD: 38/39/40/41 | ||||||
3G/2G | WCDMA: 850/900/1900/2100Mhz GSM:850/900/1800/1900Mhz | ||||||
Rate level | CAT4 DL:150Mbps / UL:50Mbps | ||||||
Transmitting power | 23dBm | ||||||
Antenna | External antenna，Gain>5db | ||||||
WiFi | ||||||||
WIFI Band | 2.4GHz,802.11b/g/n | |||||||
WIFI Rate | Highest rate 144Mbps | |||||||
WIFI Standard | IEEE 802.11b/g/n | |||||||
WIFI RF Characteristics | Highest transmit power 22dBm，sensitivity is better than -77dBm | |||||||
Number of linking users | Maximum number is 32 | |||||||
CSFB | support | |||||||

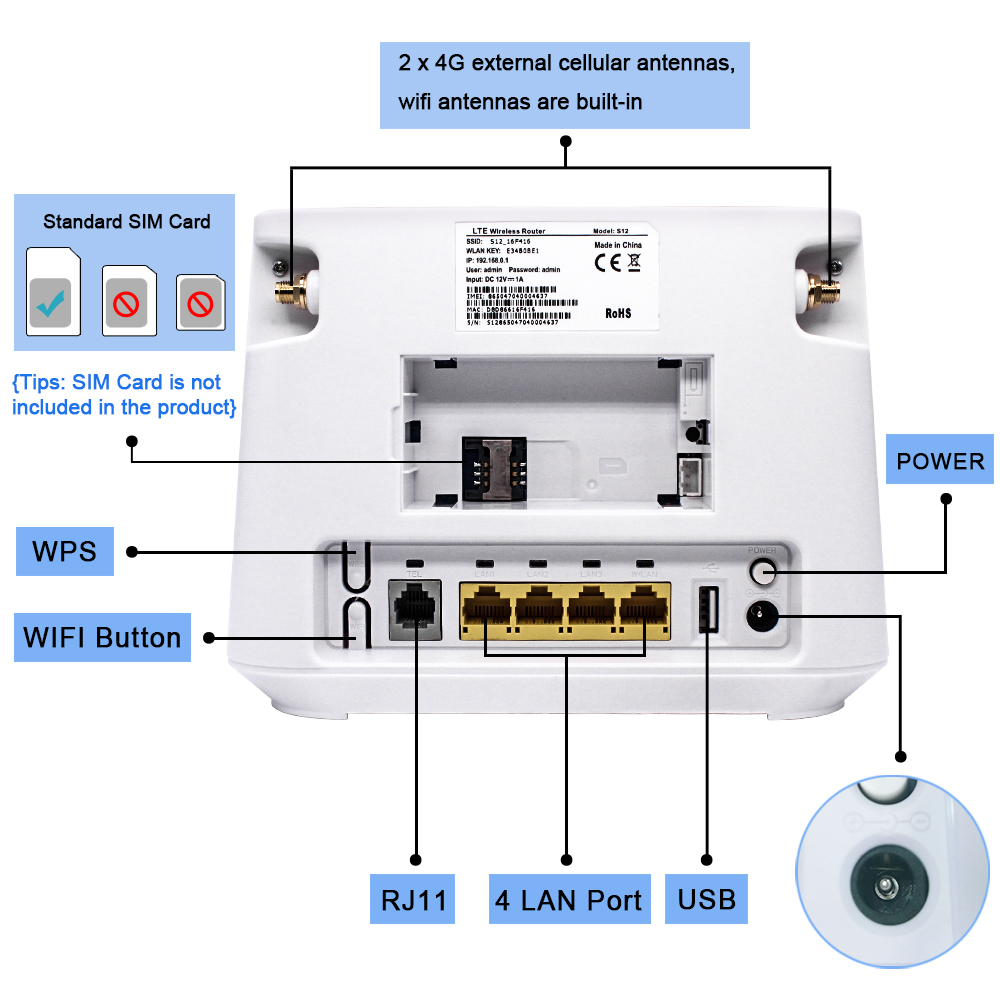

Hardware | ||||||||

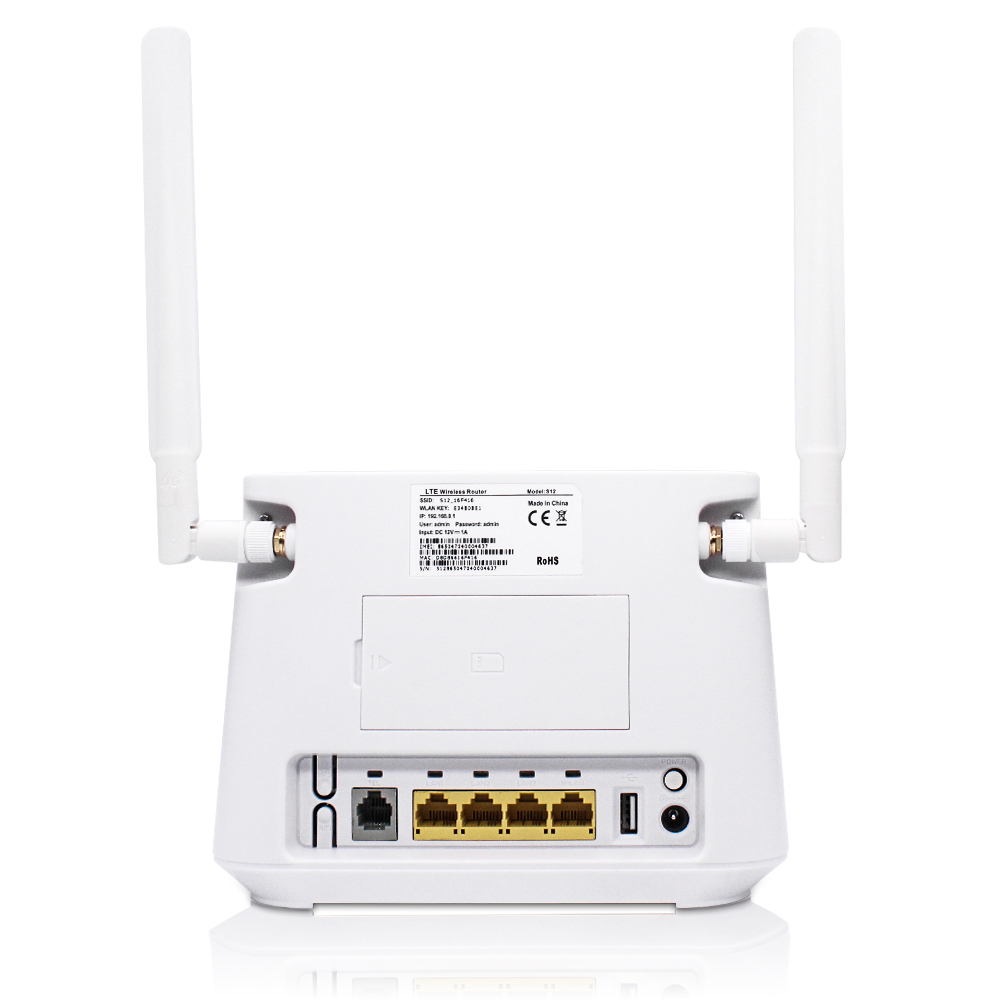

LAN | 4*RJ-45 | |||||||
RJ11 | 1*RJ-11 | |||||||
PSU | DC2.0 12V @ 500mA， | |||||||
Input | 5-15V | |||||||

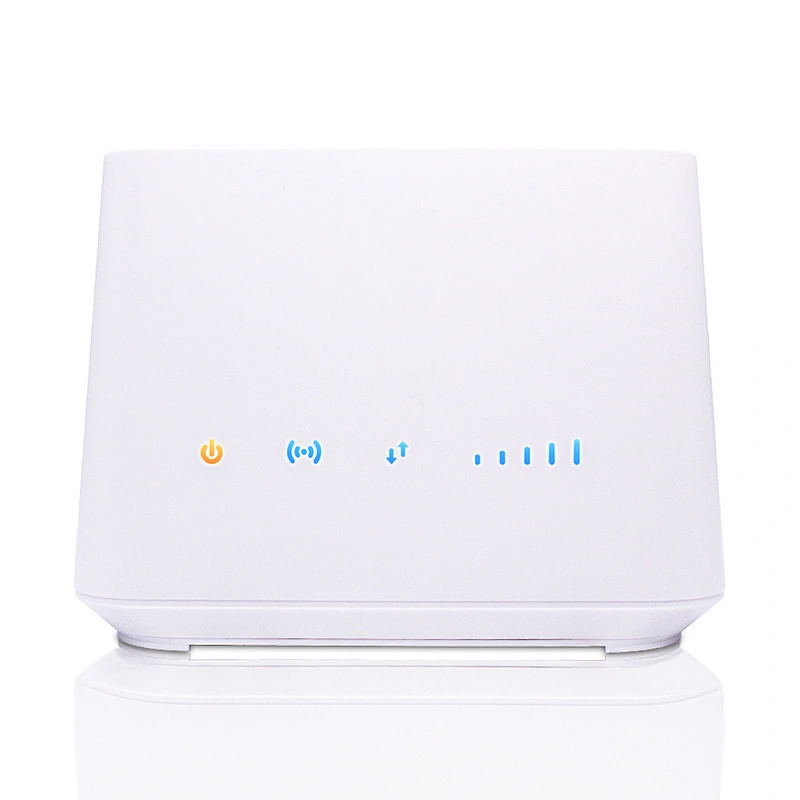

light | power，network，signal，LAN | |||||||
Certifications
Our Company
Send Message
Related Products

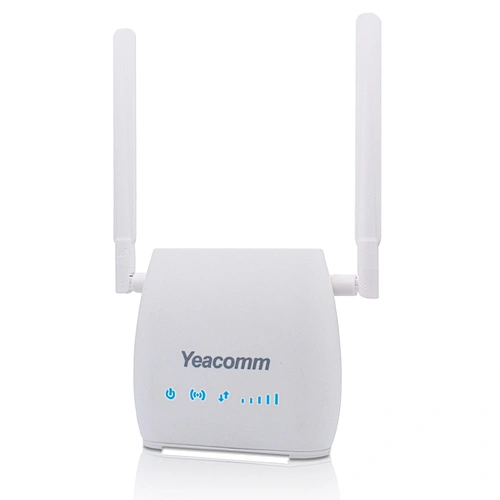

Model NO. YF-S11

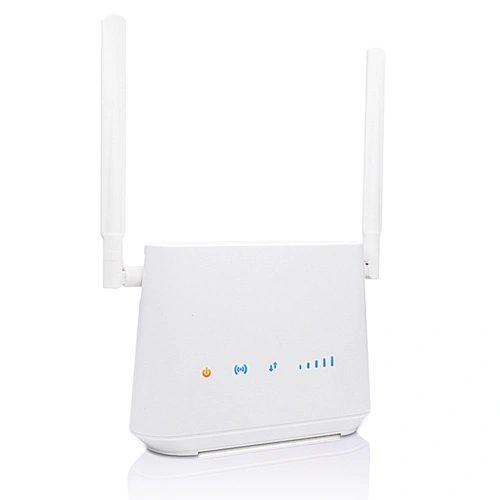

Model NO. YF-S12P
