- Product name:Industrial 3g/4g Wifi Router
- Antenna:2* 5dBi Antennas
- Interface:4 LAN /1 WAN
- CPU:Industrial 32bits CPU
- SIM card slot:2 SIM Card Slots
- WIFI:802.11 B/g/n
- Network:4G LTE+3G(HSPA+/HSPA/UMTS)
- Wireless Speed:2.4GHz 300Mbps
- Color:BLACK
- Dimensions:133 x 115.7 x 45 mm
- Max. LAN Data Rate:300Mbps
- With Modem Function:No
- Standards And Protocols:Wi-Fi 802.11g
- Standards And Protocols:Wi-Fi 802.11b
- Standards And Protocols:Wi-Fi 802.11n
- Standards And Protocols:Wi-Fi 802.11a
- Wi-Fi Supported Frequency:2.4G
- Supports WDS:Yes
- Supports WPS:Yes
- Wi-Fi Transmission Standard:802.11n
- Wired Transfer Rate:10/100Mbps
- 2.4G Wi-Fi Transmission Rate:300 Mbps
- Encryption Type:WPA2
- Encryption Type:WPA
- Encryption Type:WEP
- Private Mold:Yes
- Products Status:New
- Type:Wireless
- Application:ENTERPRISE
- Function:FireWall
- Function:QoS
- Function:VPN
- LAN Ports:4
- WAN Ports:1
- Certification:FCC
- Certification:ce
- Place of Origin:CN;FUJ
- Brand Name:Yifan/OEM
Details Images
Products Description

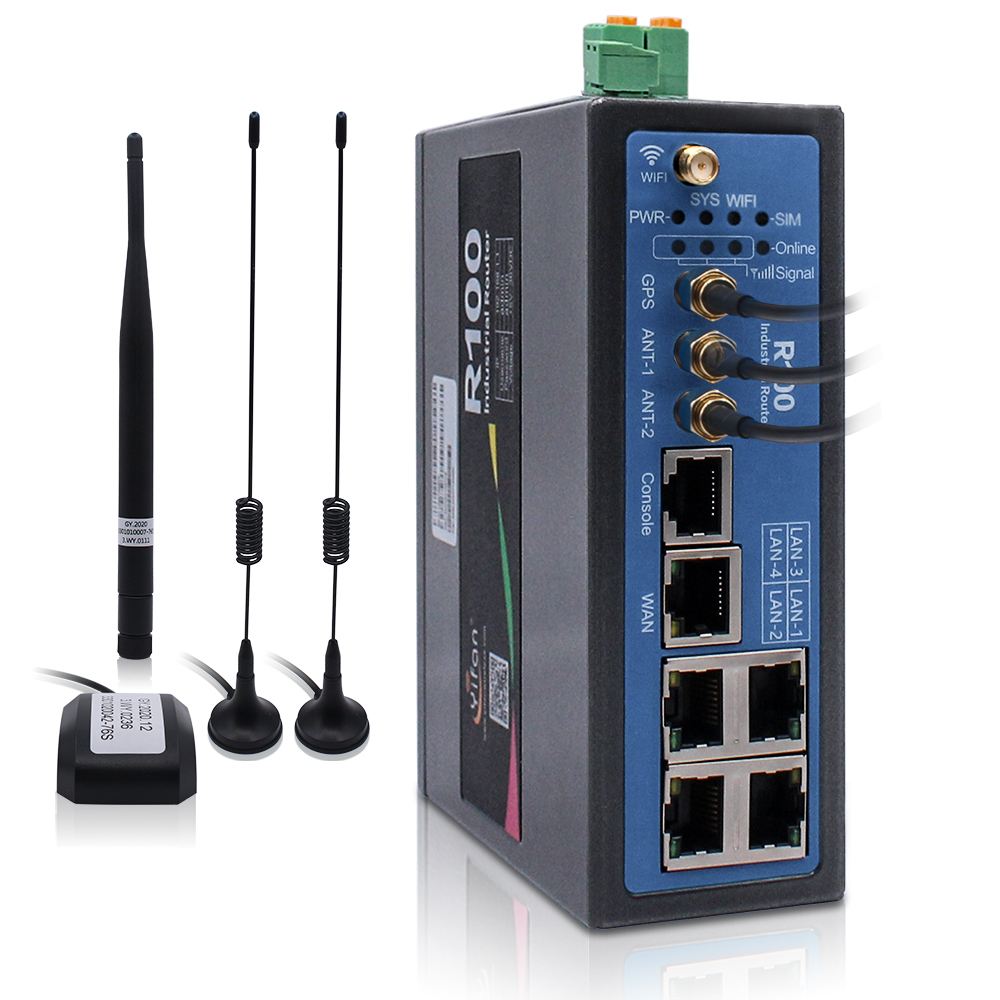

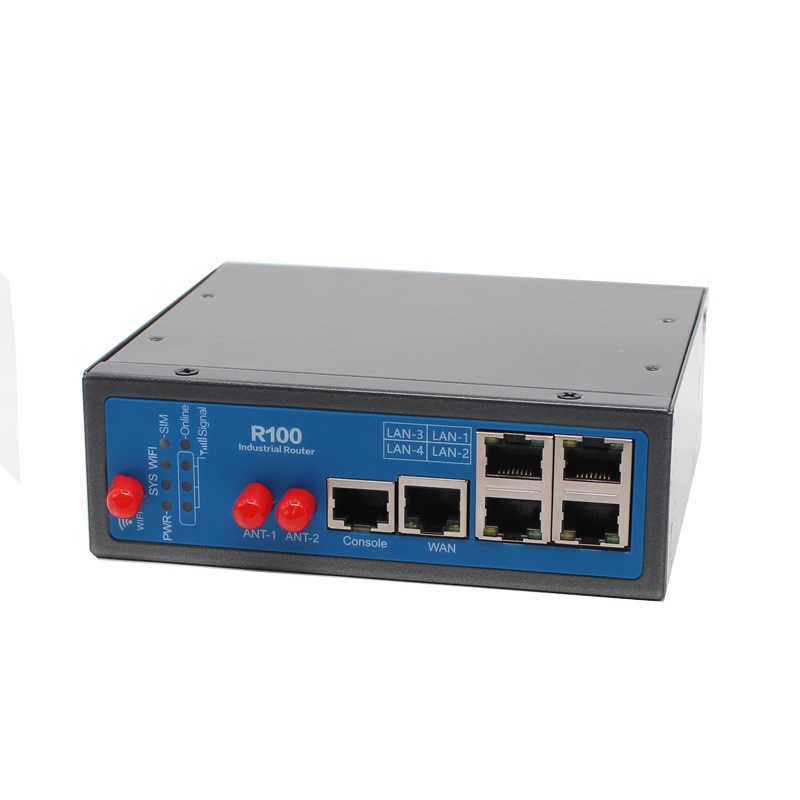

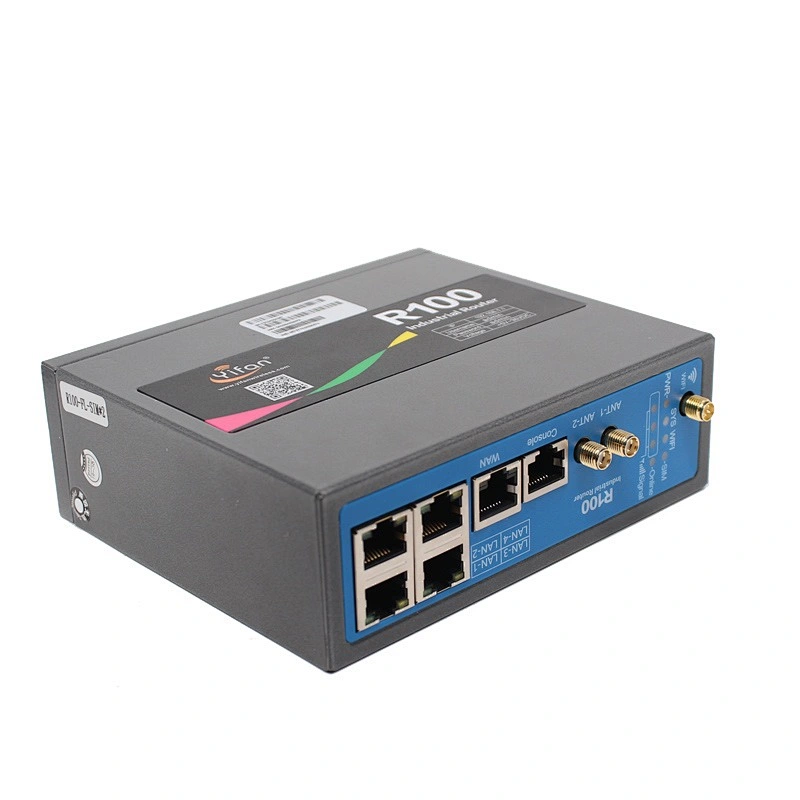

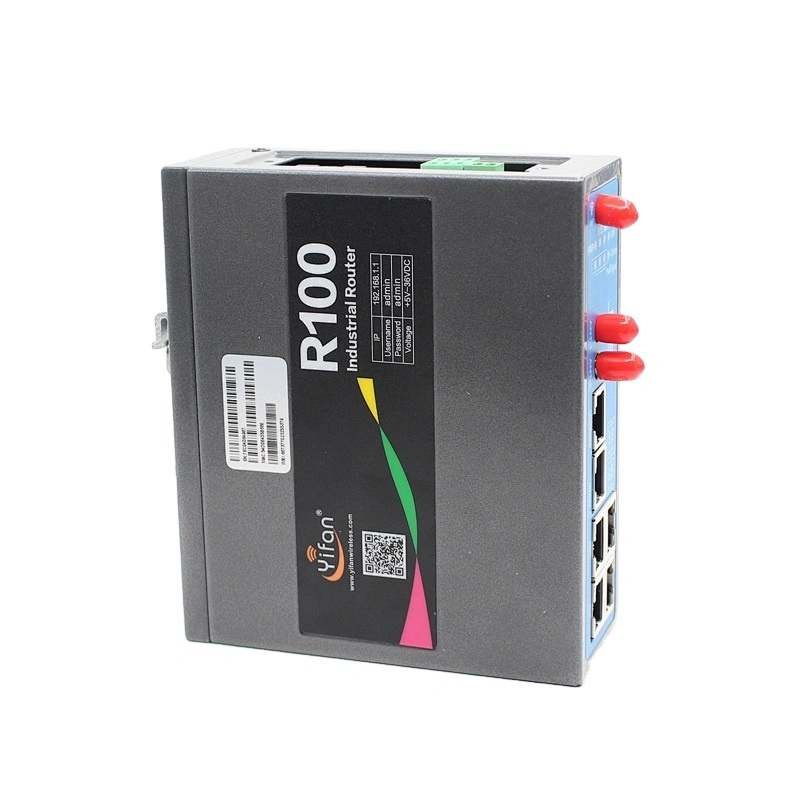

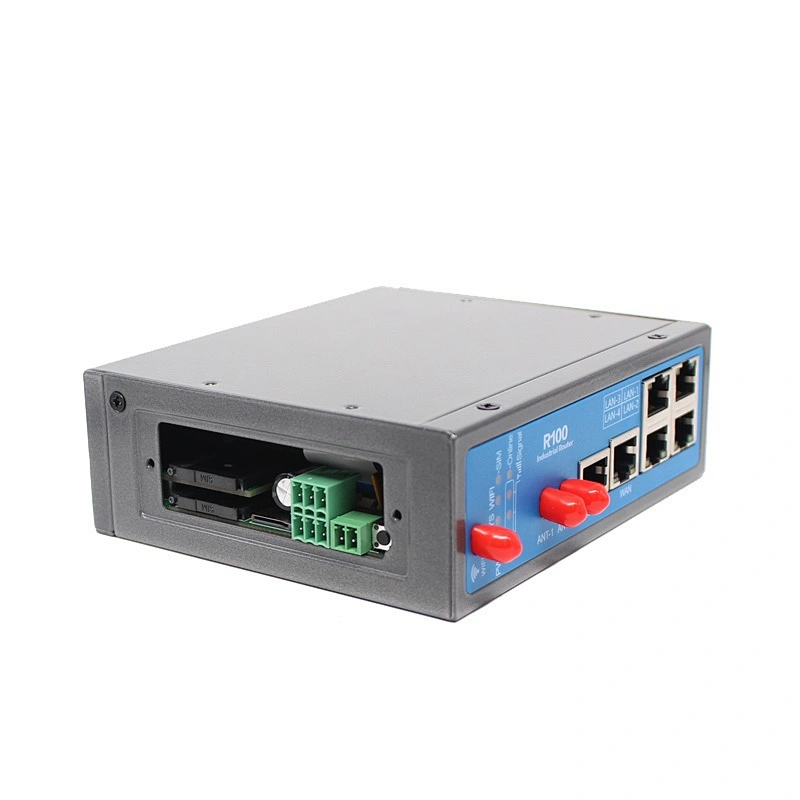

Newest R100 series industrial 4g LTE Ethernet, serial and I/O WiFi router

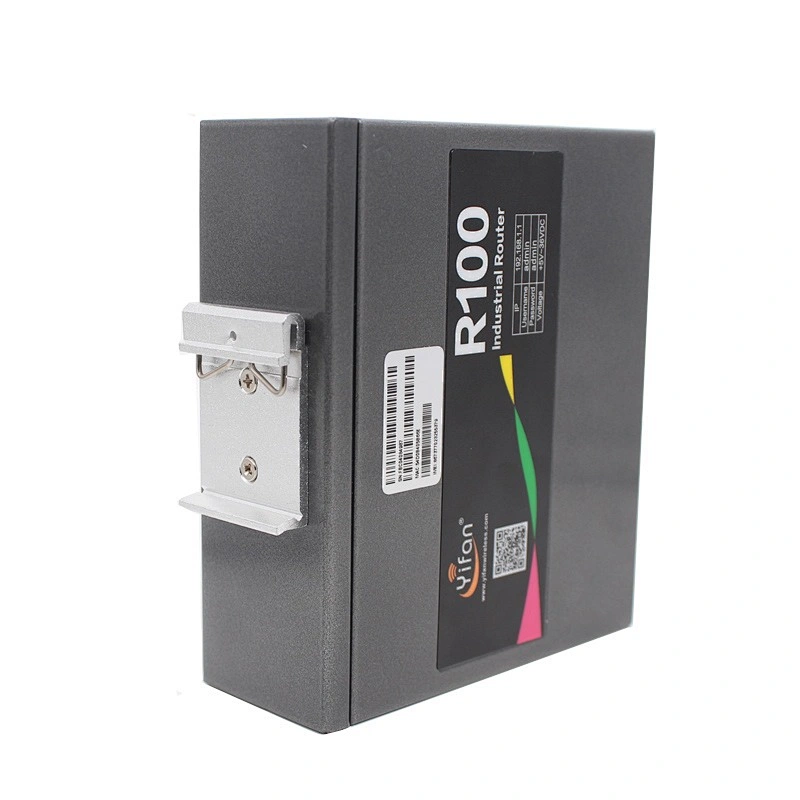

R100 series is an intelligent cellular router designed for industrial applications requiring faultless connectivity.It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc.Software-defined, multi-carrier networking, dual SIM models, 802.11n and global 2.5G/3G/HSPA+/LTE options make it easy to get connected. With DIN-rail mounting, wide operating temperature range, and IP30 metal housing, the R100 is a convenient yet reliable solution for any industrial wireless applications.
R100 series is an intelligent cellular router designed for industrial applications requiring faultless connectivity.It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc.Software-defined, multi-carrier networking, dual SIM models, 802.11n and global 2.5G/3G/HSPA+/LTE options make it easy to get connected. With DIN-rail mounting, wide operating temperature range, and IP30 metal housing, the R100 is a convenient yet reliable solution for any industrial wireless applications.
Specifications
CELLULAR WAN
• Supported Frequency Bands -- LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28 -- WCDMA: 2100/1900/900/850Mhz -- EV-DO/CDMA: 800(BC0) -- GSM/GPRS/EDGE: 850/900/1800/1900 • Automatic SIM based network operator switching
WI-FI
• IEEE802.11 b/g/n, AP and client mode. • Adjustable output power (Max: 26dBm) • Access point for up to 30 clients • Simultaneous access point/client mode • WEP, WPA-PSK, WPA2-PSK etc. Security
HOST INTERFACES
• 10/100 Base-T RJ45 Ethernet port • RS-232 or RS-485 Serial Console Port • 3 SMA antenna connectors (WI-FI and Double-cellular) • Active GPS/ZigBee antenna support (option) • (6) pin 3.5mm terminal block

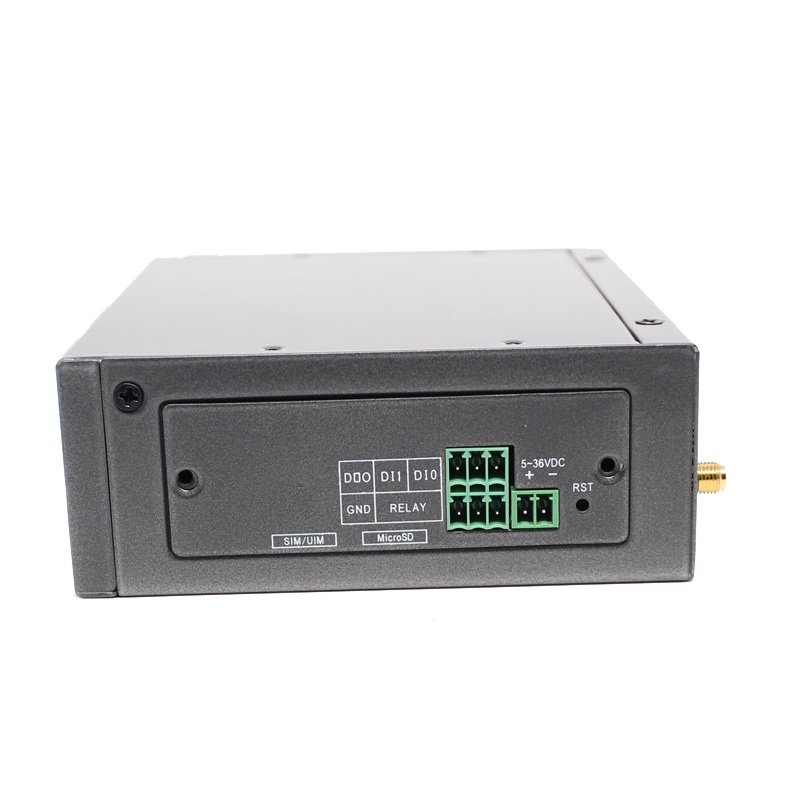

INPUT/OUTPUT
• (6) pin 3.5mm terminal block. • (2) DI, (1) DO, (1) Relay. • Input ON Voltage: 5 to 30 VDC. • Input OFF Voltage: 0 to 3 VDC. • Output < 50mA @ 30VDC.
