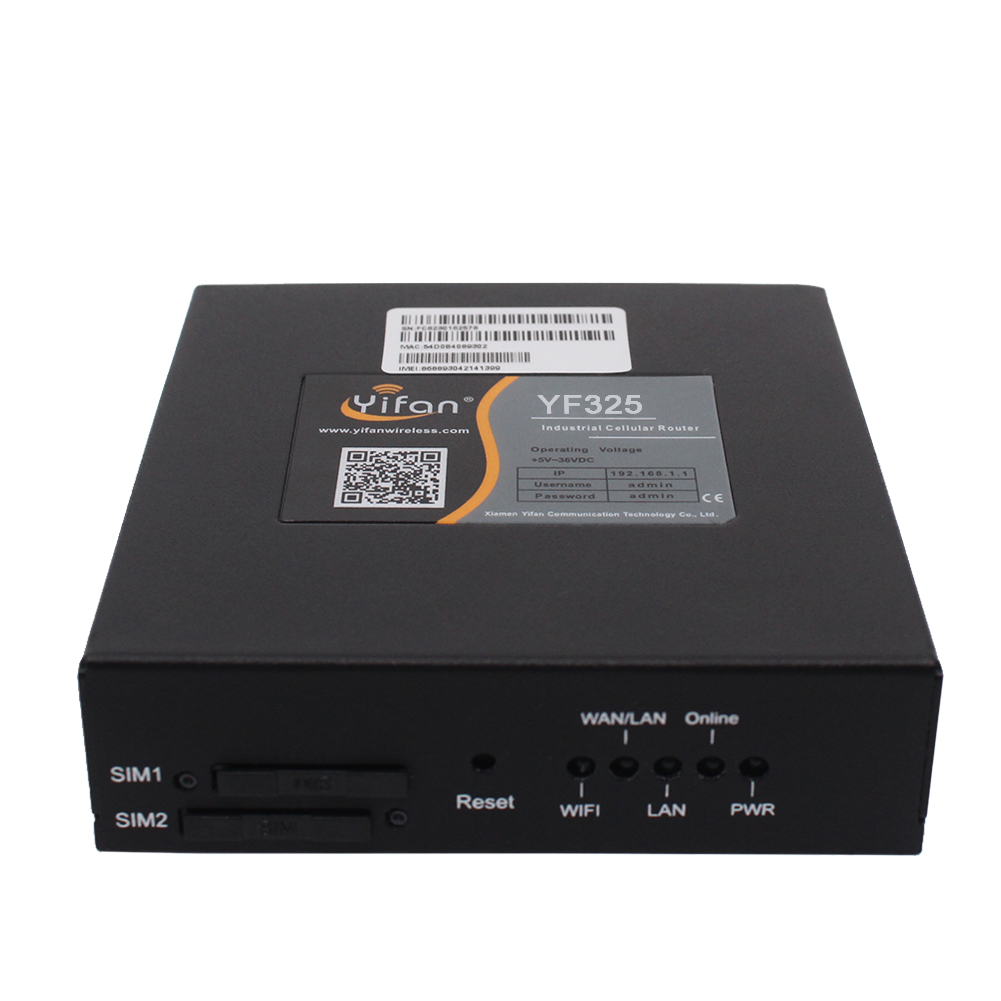

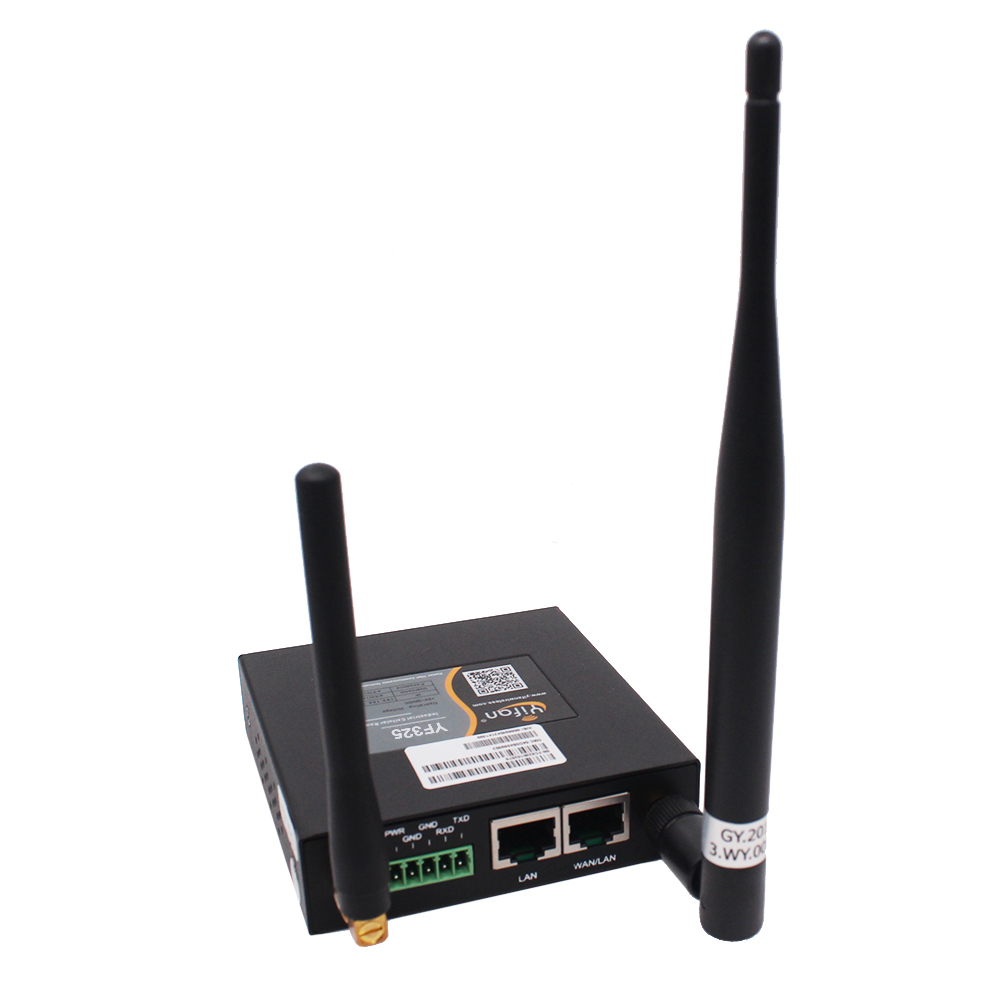

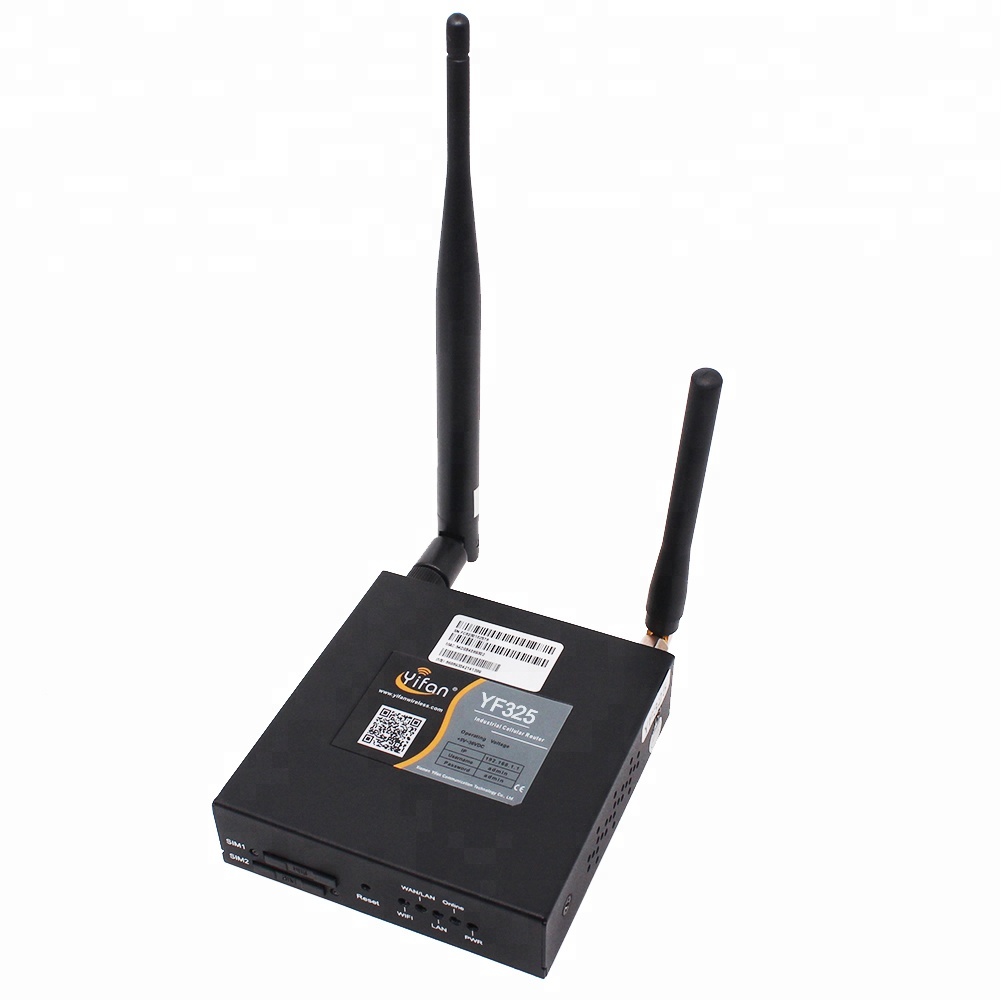

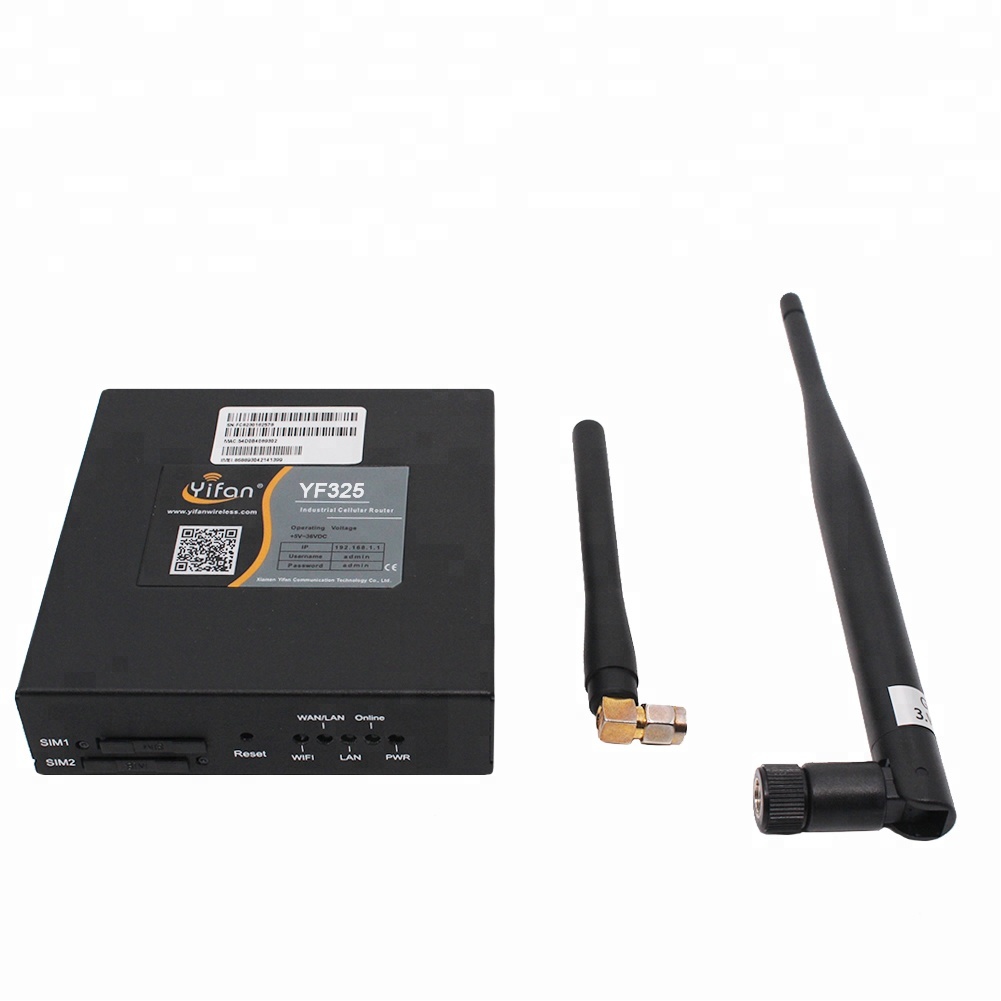

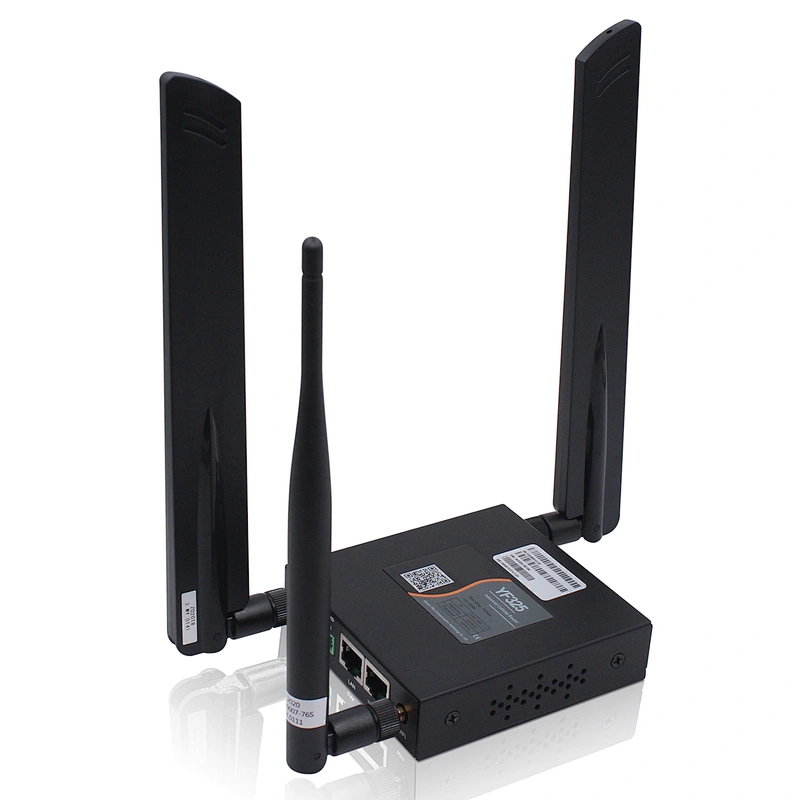

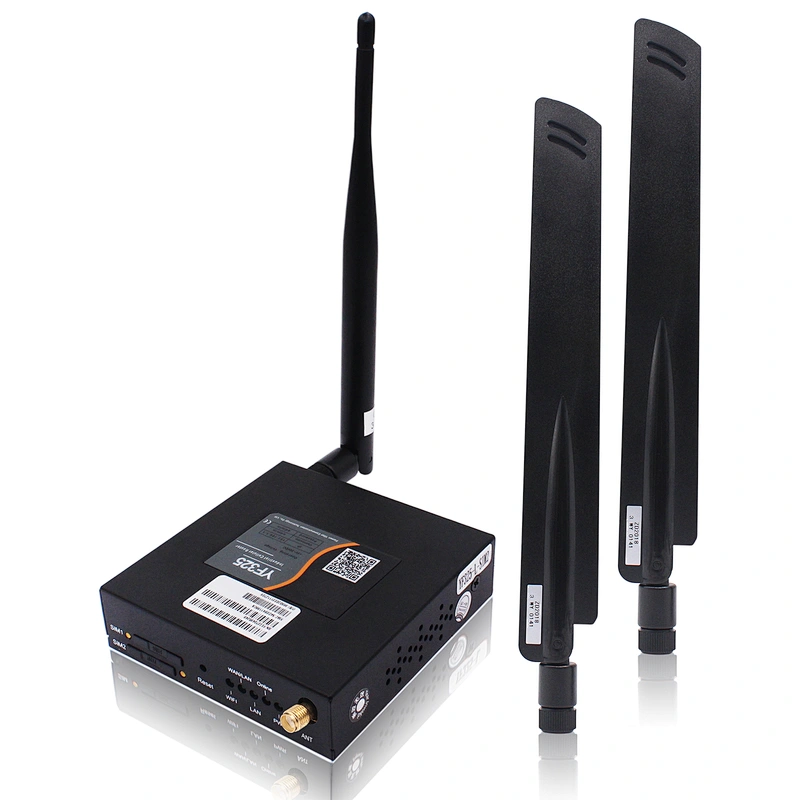

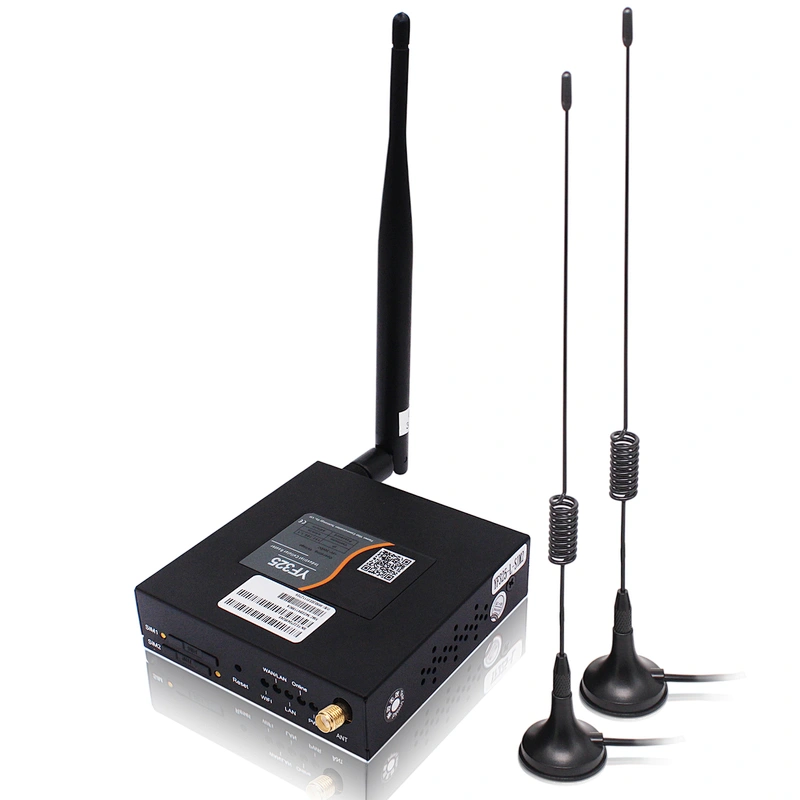

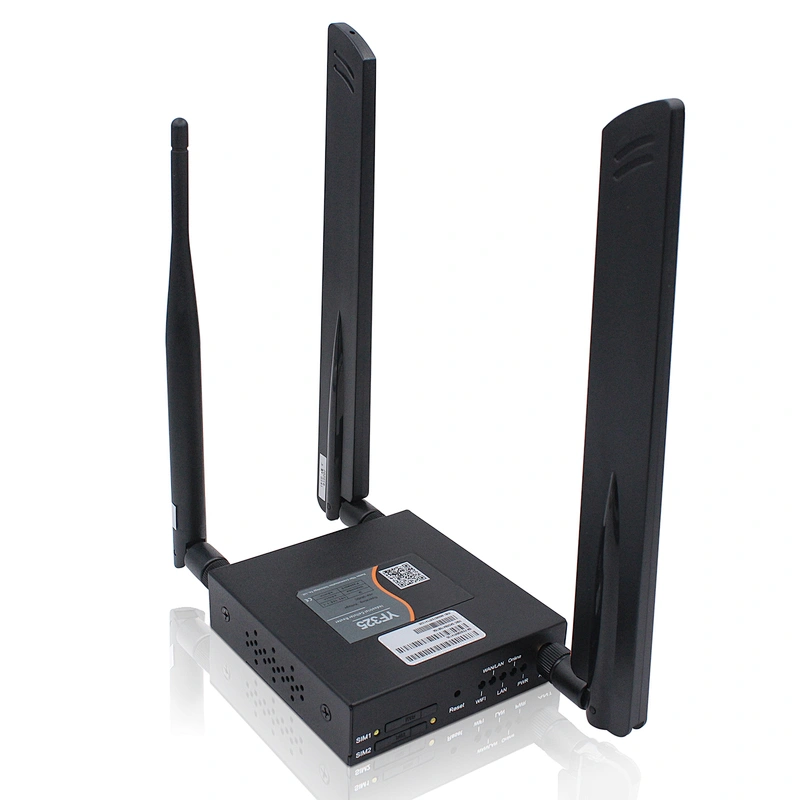

YF325 industrial use low cost dual sims wifi routers with VPN function

YF325 industrial use low cost dual sims wifi routers with VPN function

Model NO.: YF325
Minimum order quantity: 1 unit
Supply Ability: 50000.0 unit / Month
Country of Origin: Xiamen

Quantity:

Product Description

Product name:Industrial 4G Wifi Router
color:Black
Network:GPRS
Housing:Iron IP30
Size:93x89x22mm
Weight:255g
SIM card slot:2*SIM Slot Standard Card
Antenna:External
WIFI:802.11 B/g/n
CPU:Industrial 32 Bits CPU
Max. LAN Data Rate:100Mbps
With Modem Function:No
Standards And Protocols:Wi-Fi 802.11g
Standards And Protocols:Wi-Fi 802.11b
Standards And Protocols:Wi-Fi 802.11n
Standards And Protocols:Wi-Fi 802.11a
Wi-Fi Supported Frequency:2.4G
Supports WDS:No
Supports WPS:Yes
Wi-Fi Transmission Standard:802.11n
Wired Transfer Rate:10/100Mbps
2.4G Wi-Fi Transmission Rate:150 Mbps
Encryption Type:WPA2-PSK
Encryption Type:WPA-PSK
Encryption Type:WPA
Products Status:New
Type:CPE
Application:ENTERPRISE
Function:FireWall
Function:QoS
Function:VPN
LAN Ports:1
WAN Ports:1
Certification:FCC
Certification:ce
Place of Origin:CN;FUJ
Brand Name:YiFan/OEM

Product Description

Product Application

YF325 Series Cellular WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+/LTE network.

It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

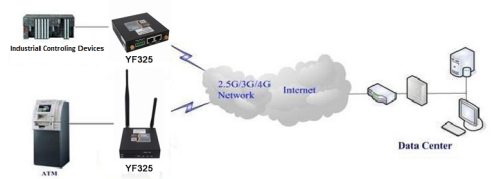

It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

High-performance:

Support multiple WAN access methods, including static IP, DHCP,PPPOE,3G/UMTS/4G/LTE,DHCP-4G.
Support double link backup between LTE&WCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support local and remote firmware upgrade, import and export configure file.
Support NTP, RTC embedde

WIFI support 802.11b/g/n. support AP, client, Repeater, Repeater Bridge mode.
WIFI support WEP,WPA,WPA2 encryption, Support MAC address filter.
Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ host , URL block, QOS, traffic, statistics, real time link speed statistics etc.
Full protocol support, such as TCP/IP, UDP, ICMP, SMTP (optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.
Schedule Reboot, Schedule Online and Offline, etc.

Features

High-powered industrial cellular module

High-powered industrial 32bits CPU

Support low-consumption mode, including sleep mode, scheduled online/offline mode

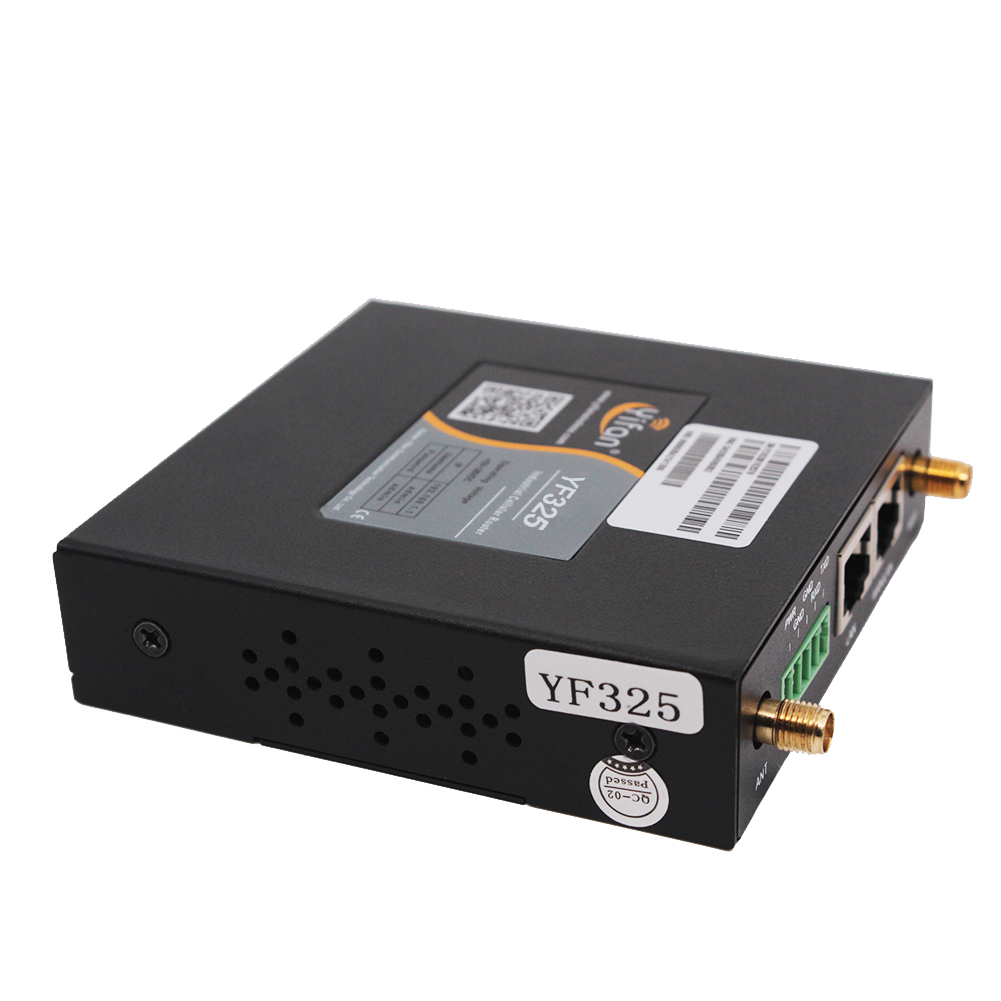

Housing: iron, providing IP30 protection.

Power range: DC 6~40V

Support hardware and software WDT

Support auto recovery mechanism, including online detect, auto redial when offline to make router always online

Ethernet port: 1.5KV magnetic isolation protection

RS232 port: 15KV ESD protection

SIM/UIM port: 15KV ESD protection

Power port: reverse-voltage and over-voltage protection

Antenna port: lightning protection(optional)

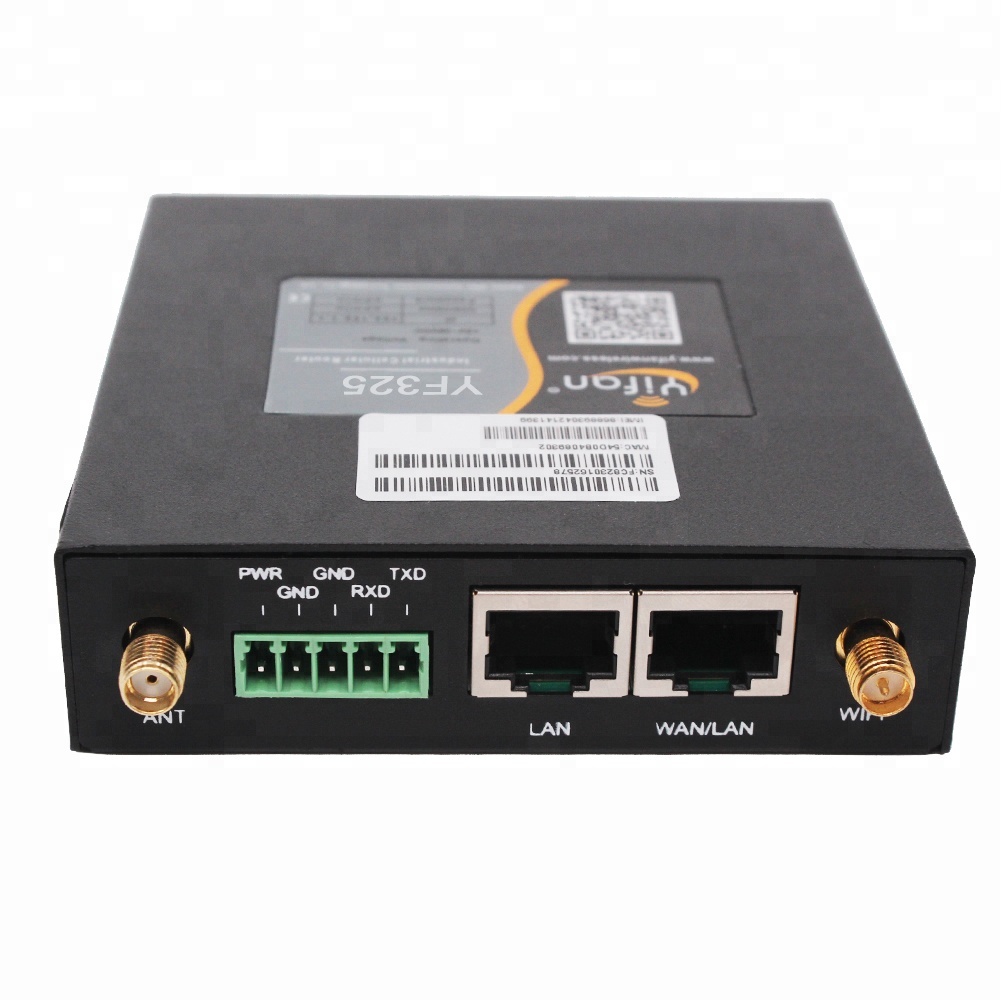

Support standard RS232

Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly

Support intellectual mode, enter into communication state automatically when powered

Provide management software for remote management

Support several work modes

Convenient configuration and maintenance interface(WEB or CLI)

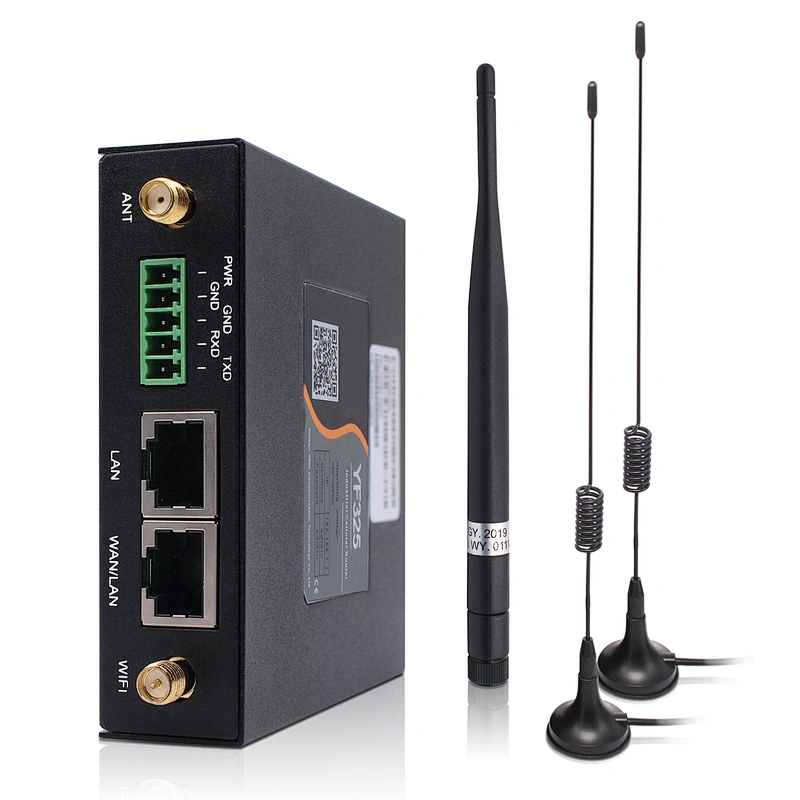

WAN/LAN configurable; 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

1 RS232/RS485 port, 15KV ESD protection Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, (space, mark)(optional) Baud rate: 2400~115200 bps

IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)

Industrial use


TX power	<23dBm
RX sensitivity	<-97dBm
Standard and Band	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20 (2100/1900/1800/1700/850/2600/900/800MHz) FDD: B2/B4/B5/B13/B17/B25/B26 (Optional), B1/B2/B3 /B5/B7/B8/B20/B28 (Optional) LTE TDD: B38/B39/B40/B41 HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz EDGE/GPRS/GSM 1900/1800/900/850MHz


CPU	Industrial 32bits CPU
FLASH	16MB(Extendable to 64MB)
Bandwidth	LTE FDD: Download speed 150Mbps, Upload speed 50Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps UMTS: 384Kbps
